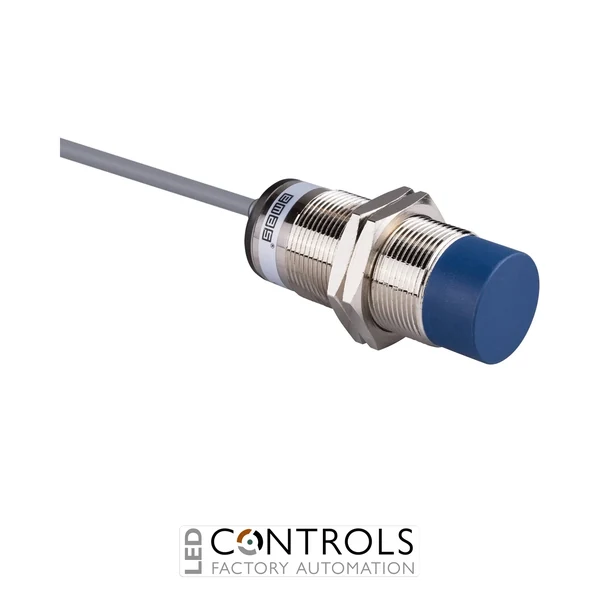

Why Choose the EMAS SCM30NM1RC2 Capacitive Sensor?
The EMAS SCM30NM1RC2 is an industrial M30 capacitive proximity sensor designed for reliable non-contact detection of metallic and non-metallic materials. Part of the EMAS SCM series, it combines a robust metal cylindrical housing with a PNP normally-closed output, making it suitable for level monitoring, material detection and presence sensing in industrial automation systems.
The SCM30NM1RC2 provides an adjustable sensing distance of 3–15 mm and uses a non-flush mounting configuration. Capacitive sensing allows the device to respond to a wide variety of target materials, making it particularly useful where plastics, glass, liquids, powders or granular products need to be detected without physical contact.
Designed for 10–30 V DC industrial control circuits, the SCM30NM1RC2 provides a PNP normally-closed (NC) transistor output and is supplied with an integrated 2 m cable. Its M30 threaded metal body provides secure and adjustable installation on machinery, conveyors, tanks, packaging equipment and process automation systems.
Key Advantages
- Capacitive sensing technology enables detection of metallic and non-metallic materials.
- Adjustable 3–15 mm sensing distance provides flexibility for different targets.
- Robust M30 metal cylindrical housing for industrial installations.
- PNP normally-closed output for compatible PLC and machine-control inputs.
- 10–30 V DC operating range suits standard industrial control supplies.
- Non-flush mounting provides an extended sensing field.
- Integrated 2 m cable enables straightforward electrical installation.
- Non-contact operation eliminates mechanical switching wear.
Key Features
- EMAS SCM series capacitive proximity sensor.
- M30 cylindrical threaded housing.
- Durable metal body.
- Non-flush / non-embeddable mounting configuration.
- Adjustable 3–15 mm sensing range.
- 10–30 V DC supply voltage.
- PNP transistor output.
- Normally-closed (NC) switching function.
- Three-wire DC sensor configuration.
- Integrated 2 m cable connection.
- Suitable for metallic and non-metallic target detection.
- Suitable for solids, liquids, powders and granular materials.
- IP65 enclosure protection.
- Short-circuit, overload and reverse-polarity protection.
- LED operating indication.
Reliable Capacitive Detection for Industrial Automation
Capacitive proximity sensors generate an electrostatic sensing field at the active face and detect changes in capacitance when a suitable target enters that field. Unlike inductive sensors, which are principally intended for metallic targets, capacitive sensors can detect many non-metallic substances including plastics, glass, liquids, powders and granular materials.
The EMAS SCM30NM1RC2 combines this versatile sensing principle with an adjustable 3–15 mm range, rugged M30 metal body and PNP normally-closed output. Its non-flush design and pre-wired 2 m cable make it a practical choice for machine builders and automation engineers requiring dependable material, level or presence detection.
Typical Applications
- Liquid and bulk-material level detection.
- Powder and granular material monitoring.
- Plastic and non-metallic object detection.
- Packaging and filling machinery.
- Industrial conveyor systems.
- Presence and position detection.
- Automated manufacturing equipment.
- PLC-based industrial control systems.
