Why Choose the EMAS SCM30NP1RSX Capacitive Sensor?

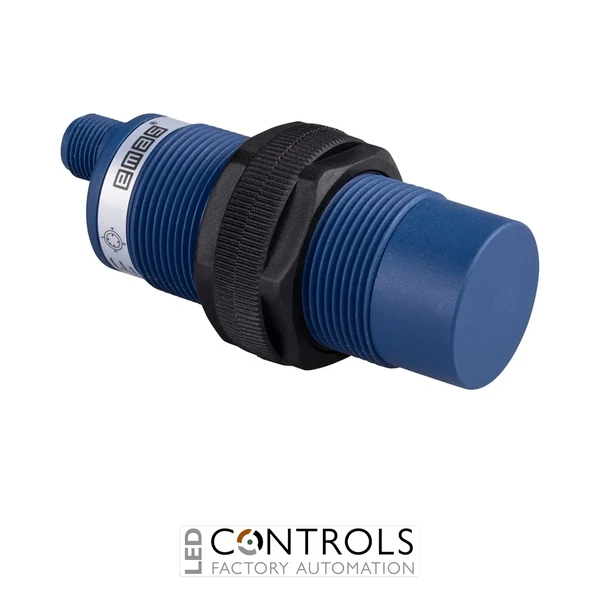

The EMAS SCM30NP1RSX is an industrial M30 capacitive proximity sensor designed for reliable non-contact detection of metallic and non-metallic materials in machinery and automation systems. Part of the EMAS SCM Series, this model combines a plastic cylindrical housing with a PNP normally closed output and adjustable capacitive sensing for versatile industrial detection.
The SCM30NP1RSX provides an adjustable 3–15 mm sensing distance and operates from a 12–30 V DC supply. Its non-flush mounting arrangement is designed to provide the sensing field required for capacitive detection, while the sensor's 25 Hz switching frequency supports dependable presence and material monitoring in automated equipment.
With its PNP normally closed (NC) transistor output and industrial M12 connector, the SCM30NP1RSX integrates readily with compatible PLC and machine-control inputs. Short-circuit, overload and reverse-polarity protection provide additional electrical protection, while the IP65 housing supports reliable operation in industrial environments.
Key Advantages
- Versatile capacitive detection of metallic and non-metallic targets.
- Adjustable 3–15 mm sensing distance for application-specific setup.
- PNP normally closed (NC) output for compatible industrial control systems.
- 12–30 V DC operating range suits standard automation power supplies.
- M12 connector simplifies installation, servicing and replacement.
- Integrated short-circuit, overload and reverse-polarity protection.
Key Features
- EMAS SCM Series capacitive proximity sensor.
- M30 cylindrical threaded format.
- Plastic housing with PBT sensing face.
- Non-flush / non-embeddable mounting.
- 3–15 mm adjustable sensing distance.
- PNP transistor output.
- Normally closed (NC) switching function.
- 12–30 V DC operational voltage.
- 200 mA maximum load current.
- 25 Hz switching frequency.
- M12 connector electrical connection.
- IP65 degree of protection.
Reliable Capacitive Detection for Industrial Automation
Capacitive proximity sensors such as the EMAS SCM30NP1RSX detect changes in the electrical field at the sensing face when a target approaches. Unlike inductive sensors, capacitive sensing is suitable for both conductive and suitable non-conductive materials, enabling detection of products such as plastics, glass, paper, powders, granular materials and liquids.
The adjustable sensing distance allows the SCM30NP1RSX to be configured for different materials and installation conditions. Combined with its protected PNP transistor output, M12 connection and non-contact operating principle, this makes the sensor a practical choice for repetitive industrial detection tasks where long service life and straightforward maintenance are important.
Typical Applications
- Plastic, glass and packaging-material detection.
- Powder and granular material monitoring.
- Liquid and container detection.
- Level detection in suitable hoppers and vessels.
- Packaging and filling machinery.
- Conveyor and material handling equipment.
- Automated manufacturing and process-control systems.
