Why Choose the EMAS SIM12FM1PSX Inductive Sensor?

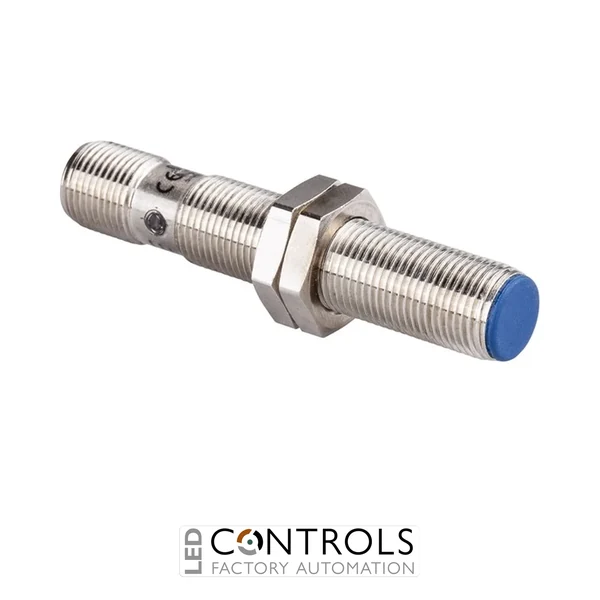

The EMAS SIM12FM1PSX is a SIM Series M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machinery. Its compact cylindrical metal housing and flush-mountable sensing face make it particularly suitable for installations where the sensor needs to be embedded into surrounding metal.
The SIM12FM1PSX provides a nominal sensing distance of 2 mm and uses a PNP normally-open (NO) output. Operating from 10–30 V DC and supporting switching frequencies up to 800 Hz, it is suitable for responsive position, presence and machine-sequencing applications.
Electrical connection is provided through an M12 connector, simplifying sensor replacement and machine wiring. The sensor also features IP67 protection, reverse-polarity protection and short-circuit/overload protection, supporting dependable operation in demanding industrial environments.
Key Advantages
- Reliable non-contact detection of metallic targets.
- Compact M12 cylindrical metal housing.
- Flush / embeddable mounting allows installation into surrounding metal.
- 2 mm nominal sensing distance for precise target detection.
- PNP normally-open output for compatible PLC and control inputs.
- Wide 10–30 V DC operating voltage range.
- Fast switching frequency of up to 800 Hz.
- M12 connector supports convenient installation and sensor replacement.
- IP67 protection for industrial environments.
- Integrated reverse-polarity and short-circuit protection.
Key Features
- EMAS SIM Series inductive proximity sensor.
- M12 threaded cylindrical format.
- Metal sensor body.
- Flush mounting configuration.
- 2 mm sensing distance.
- PNP-NO transistor output.
- 10–30 V DC operational voltage.
- 800 Hz switching frequency.
- M12 connector electrical connection.
- Maximum load current of 200 mA.
- IP67 protection rating.
- Operating temperature from -25 to +70 °C.
- Reverse-polarity protection.
- Short-circuit and overload protection.
- PBT sensing face.
- CE, EAC, SEPRO and UKCA marked.
Fast Flush-Mount Metal Detection for Industrial Automation
The EMAS SIM12FM1PSX uses inductive sensing technology to detect suitable metallic targets without requiring physical contact. When a metal object enters the sensor's electromagnetic sensing field, the solid-state PNP output changes state, allowing the target's presence or position to be communicated to a compatible PLC or industrial controller.
Its flush / embeddable design allows the sensing face to be installed level with surrounding metal, making the SIM12FM1PSX well suited to compact machine assemblies. The combination of a 2 mm sensing distance, 800 Hz switching frequency, M12 connector and IP67 enclosure provides a practical solution for repetitive detection duties in automated machinery.
Typical Applications
- Metallic component presence detection.
- Machine position and end-position sensing.
- Industrial conveyor systems.
- Automated assembly machinery.
- Metal workpiece detection.
- Packaging and production equipment.
- Counting metallic machine components.
- High-speed automation and sequencing applications.
- PLC-based industrial control systems.
