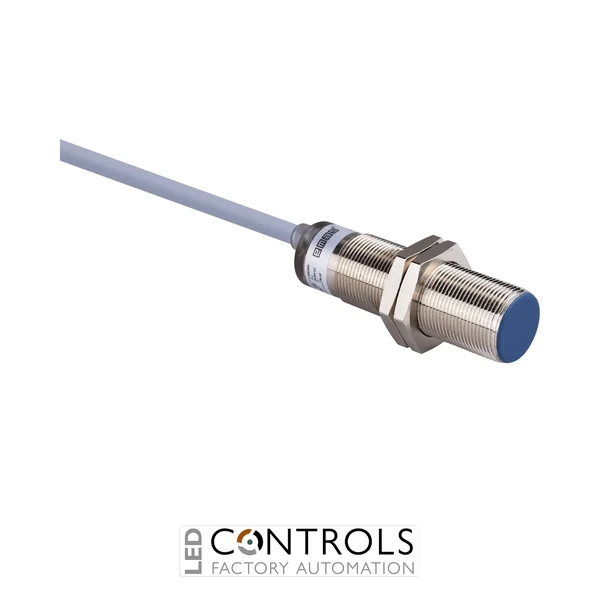

Why Choose the EMAS SIM18FM1NC2 Inductive Sensor?
The EMAS SIM18FM1NC2 is a robust M18 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the EMAS SIM Series inductive sensor range, it combines a durable metal body with an NPN normally open (NPN-NO) output and a practical 2 m cable connection for straightforward integration into control systems.
This flush-mount inductive sensor provides a 5 mm nominal sensing distance and operates from a 10–30 V DC supply. Its contactless sensing principle eliminates the mechanical wear associated with conventional limit switches, making it well suited to repetitive position detection, machine sequencing, component counting and presence sensing applications.
With an IP67 protection rating, fast 800 Hz switching frequency and integrated short-circuit and reverse-polarity protection, the SIM18FM1NC2 is engineered for dependable operation in demanding industrial environments. Its M18 cylindrical metal housing and 2 m cable provide a durable and convenient solution for installation in machinery, production equipment and automated systems.
Key Advantages
- Reliable non-contact detection of metallic objects without mechanical wear.
- 5 mm sensing distance for dependable proximity and position detection.
- NPN normally open (NPN-NO) output for compatible industrial control applications.
- 10–30 V DC operating voltage compatible with common automation power supplies.
- Fast 800 Hz switching frequency for responsive machine sensing.
- IP67 protection for use in demanding industrial environments.
- Integrated short-circuit and reverse-polarity protection.
- 2 m cable connection for straightforward wiring and installation.
Key Features
- EMAS SIM Series inductive sensor.
- M18 cylindrical metal body.
- Flush mounting configuration.
- NPN-NO switching output.
- 5 mm nominal sensing distance.
- 10–30 V DC operating voltage.
- 800 Hz switching frequency.
- 200 mA maximum load current.
- 2 m cable connection.
- IP67 protection rating.
- PBT sensing face for durable industrial operation.
- Reverse-polarity, short-circuit and overload protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors such as the EMAS SIM18FM1NC2 detect metallic targets using an electromagnetic field, allowing position and presence detection without physical contact between the sensor and moving equipment. This contactless operating principle reduces mechanical wear and makes inductive sensors particularly suitable for applications requiring frequent and repeatable switching.
The SIM18FM1NC2 combines a compact M18 cylindrical format with a 5 mm flush sensing range and NPN-NO output. Its 800 Hz switching frequency, protective circuitry and IP67 enclosure make it suitable for integration with compatible PLCs, machine controllers and other industrial automation equipment.
Typical Applications
- Machine position and end-of-travel detection.
- Metal component presence detection.
- Industrial conveyors and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Counting and positioning of metallic components.
- PLC-controlled industrial automation systems.
- OEM machinery and production equipment.
