Why Choose the EMAS SIM30FM1OSX Inductive Sensor?

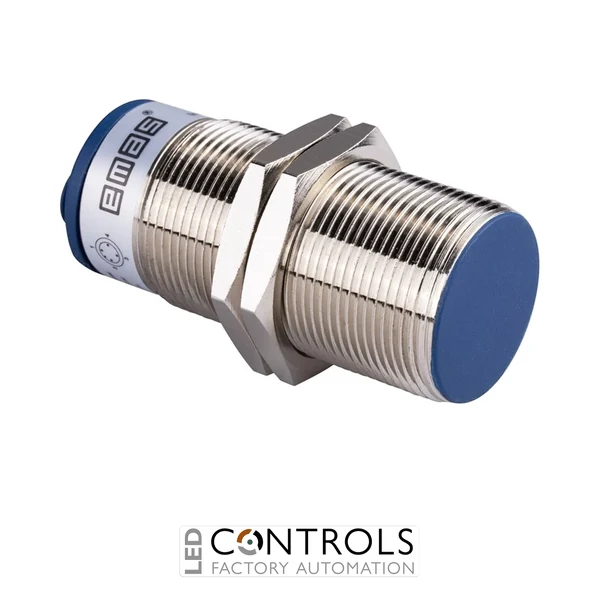

The EMAS SIM30FM1OSX is a robust M30 cylindrical inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. As part of the EMAS SIM Series inductive sensor range, it provides dependable switching performance with a large threaded housing and M12 connector connection for straightforward installation.
This sensor features a NPN normally closed (NC) switching output and a flush mounting design, allowing accurate detection where the sensor is installed close to surrounding metal structures. The non-contact sensing principle eliminates mechanical wear, providing long service life and consistent operation in demanding industrial environments.
With a 10 mm sensing distance, 10–30 V DC supply voltage and IP67 protection rating, the SIM30FM1OSX is suitable for position detection, machine automation, production equipment and industrial monitoring systems requiring reliable metallic object sensing.
Key Advantages
- Heavy-duty M30 inductive proximity sensor for industrial automation.
- NPN normally closed output for integration with PLC and control systems.
- 10 mm flush sensing distance for reliable object detection.
- Non-contact operation reduces mechanical wear and maintenance.
- Threaded cylindrical design enables simple installation and adjustment.
- IP67 protection rating supports operation in industrial environments.
Key Features
- EMAS SIM Series inductive sensor.
- M30 cylindrical sensor housing.
- NPN normally closed (NC) switching output.
- Flush mounting type.
- 10 mm nominal sensing distance.
- M12 connector connection.
- Suitable for automated machinery and industrial control applications.
- Integrated protection against common electrical faults.
Inductive proximity sensors such as the EMAS SIM30FM1OSX provide accurate detection of metallic targets without physical contact, making them suitable for high-cycle industrial applications. Solid-state switching technology ensures reliable performance while reducing mechanical maintenance requirements.
The SIM Series provides automation engineers and machine builders with a dependable sensing solution combining rugged construction, compact dimensions and simple integration into modern industrial control systems.
Typical Applications
- Industrial automation machinery.
- Metal object presence detection.
- Assembly and production equipment.
- Conveyor and material handling systems.
- Machine tool monitoring.
- PLC-based automation systems.
