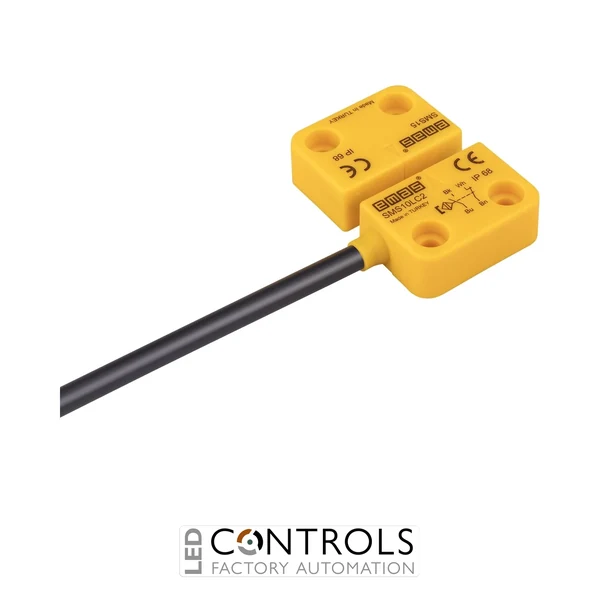

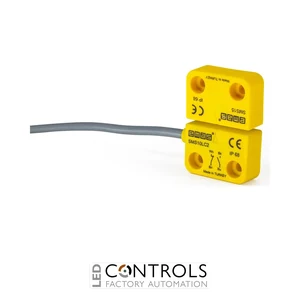

Why Choose the EMAS SMS10LC2-S15 Rectangular Magnetic Switch?
The EMAS SMS10LC2-S15 is a compact 22 mm rectangular magnetic switch designed for contactless position monitoring of doors, guards and moving machine elements in industrial automation applications. Its magnetic sensing principle enables switching without direct mechanical engagement, helping reduce physical wear during repeated operating cycles.
This SMS variant provides a 1NC + 1NO contact configuration and a 5 mm sensing distance. The complementary normally-closed and normally-open contacts provide practical signalling options for compatible control circuits, while the compact housing supports installations where mounting space is limited.
The SMS10LC2-S15 features a left-exit 2 m integral cable and is supplied without an LED indicator. These characteristics make it a practical choice for machine builders and automation engineers requiring a straightforward wired magnetic position switch with a defined cable-exit orientation.
Key Advantages
- Contactless magnetic position sensing for doors, guards and moving machine elements.
- 1NC + 1NO contacts provide complementary switching outputs.
- 5 mm sensing distance for close-range magnetic detection.
- Compact 22 mm rectangular format supports space-conscious installations.
- Left-exit cable configuration provides a defined wiring orientation.
- Integral 2 m cable simplifies connection to compatible control equipment.
- Contactless operation helps minimise mechanical wear.
- Purpose-designed non-LED version for applications where local visual indication is unnecessary.
Key Features
- EMAS SMS magnetic switch.
- 22 mm rectangular format.
- Left cable exit.
- 1NC + 1NO contact configuration.
- 5 mm sensing distance.
- Without LED indicator.
- 2 m integral cable.
- Contactless magnetic operating principle.
- Designed for industrial position-monitoring applications.
Reliable Contactless Magnetic Position Monitoring
Magnetic switches provide position detection without requiring the direct mechanical actuation associated with conventional limit switches. When the corresponding magnetic target enters the sensing area, the switch changes contact state, allowing compatible control equipment to detect the position of the monitored door, guard or moving component.
The EMAS SMS10LC2-S15 combines this contactless operating principle with 1NC + 1NO contacts, a 5 mm sensing distance and a compact 22 mm rectangular format. Its left-exit 2 m cable provides a practical installation arrangement for industrial machinery and automation equipment where local LED indication is not required.
Typical Applications
- Industrial machine door position monitoring.
- Guard and access-panel detection.
- Packaging and processing machinery.
- Automated assembly equipment.
- Conveyor and material handling systems.
- Industrial control and automation equipment.
- Machine position detection.
- OEM machinery installations.
