Why Choose the EMAS SMS10LSZ-S15 Rectangular Magnetic Door Switch?

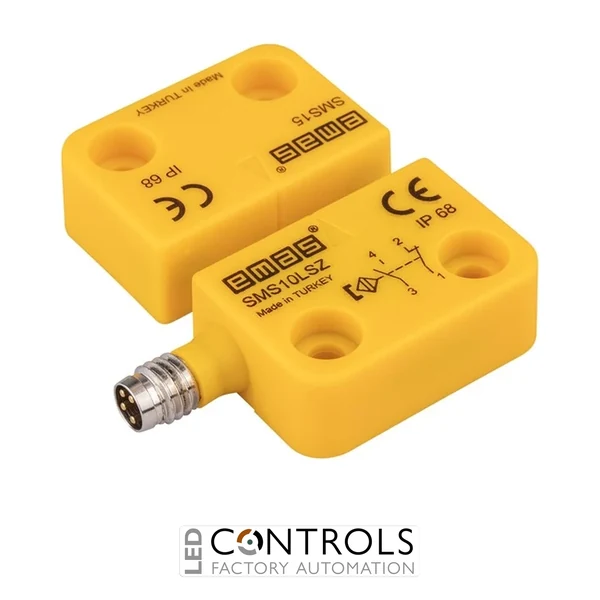

The EMAS SMS10LSZ-S15 is a compact 22 mm rectangular magnetic door switch from the EMAS SM Series, designed for contactless position monitoring of doors, guards and moving elements on industrial machinery. Its plastic construction and magnetic sensing principle provide a practical solution where reliable position detection is required without conventional mechanical actuation.
This exact model features a 1NC + 1NO contact configuration with a 5 mm sensing distance. The complementary normally-closed and normally-open contacts provide useful signalling options for compatible control circuits, while the compact 22 mm format is particularly suited to installations where available mounting space is limited.
The SMS10LSZ-S15 is a left-exit version fitted with an M8 4-pin connector rather than an integral cable, supporting convenient connection and replacement within industrial equipment. This version is supplied without an LED indicator, making it suitable for applications where local visual status indication is not required.
Key Advantages
- Contactless magnetic door and position monitoring.
- 1NC + 1NO contacts provide complementary switching states.
- 5 mm sensing distance for close-range magnetic detection.
- Compact 22 mm rectangular housing supports space-conscious installations.
- Left-exit configuration provides a defined installation orientation.
- M8 4-pin connector enables convenient connection and servicing.
- Plastic housing suitable for industrial machine applications.
- Contactless operation helps minimise mechanical wear.
Key Features
- EMAS SM Series magnetic door switch.
- 22 mm rectangular format.
- Plastic body construction.
- Left-exit design.
- 1NC + 1NO contact configuration.
- 5 mm sensing distance.
- M8 4-pin connector.
- Without LED indicator.
- Contactless magnetic operating principle.
- Designed for industrial door, guard and position monitoring.
Reliable Contactless Magnetic Position Monitoring
Magnetic door switches provide position information without requiring direct mechanical engagement between the switch and moving machine component. When the associated magnetic actuator enters the sensing area, the switch changes contact state, enabling compatible control equipment to determine the position of the monitored door, guard or access panel.
The EMAS SMS10LSZ-S15 combines this contactless principle with 1NC + 1NO contacts, a 5 mm sensing distance and an M8 4-pin connection. Its compact 22 mm rectangular body and left-exit arrangement make it a practical choice for industrial machinery requiring straightforward installation and convenient connector-based wiring.
Typical Applications
- Industrial machine door position monitoring.
- Guard and access-panel detection.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Conveyor and material handling systems.
- Industrial automation equipment.
- Machine component position detection.
- OEM machinery installations.
