Why Choose the EMAS SMS11RC2-S15 Magnetic Door Switch?

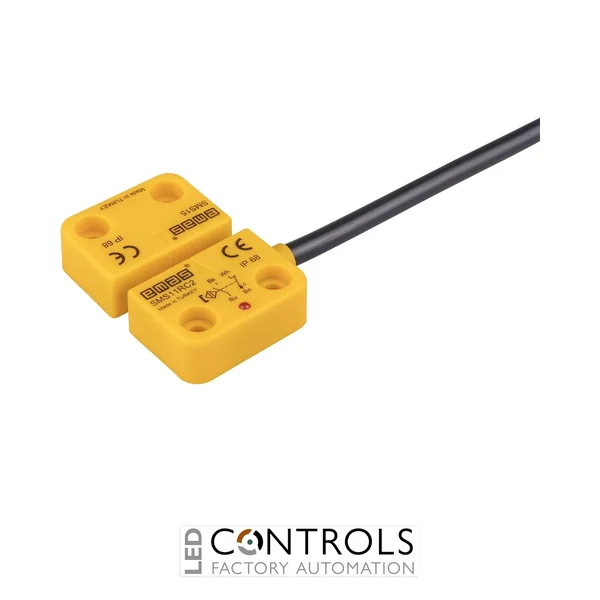

The EMAS SMS11RC2-S15 is a compact 22 mm rectangular magnetic door switch designed for non-contact monitoring of machine guards, protective doors and industrial access points. Part of the EMAS SM Series, this model combines a plastic housing, right-side cable exit, 1NC + 1NO contact configuration and a 5 mm sensing distance.
The SMS11RC2-S15 features an integrated LED status indicator, providing convenient local visual indication during operation and commissioning. Its magnetic operating principle allows switching without mechanical engagement between the sensor and corresponding actuator, helping reduce mechanical wear in machinery where doors or guards are opened and closed frequently.
Supplied with a 2 m pre-wired cable, the SMS11RC2-S15 provides a practical connection solution for industrial installations. Its compact 22 mm rectangular format and right-exit cable orientation make it particularly useful where installation space and cable-routing direction need to be considered.
Key Advantages
- Reliable non-contact magnetic detection for industrial doors and machine guards.
- 1NC + 1NO contact configuration provides complementary switching outputs.
- 5 mm sensing distance for compatible SM Series actuator installations.
- Integrated LED status indication assists operation, commissioning and diagnostics.
- Compact 22 mm rectangular format for space-conscious machinery installations.
- Right-side cable exit provides a defined wiring orientation.
- 2 m pre-wired cable simplifies electrical installation.
- Non-contact operation avoids mechanical engagement between the sensor and actuator.
Key Features
- EMAS SM Series magnetic door switch.
- 22 mm nominal rectangular format.
- Plastic body construction.
- Right-exit configuration.
- 1NC + 1NO contacts.
- 5 mm sensing distance.
- Integrated LED indicator.
- 2 m pre-wired cable connection.
- Non-contact magnetic switching principle.
- Designed for industrial door and machine-guard position monitoring.
Compact Non-Contact Magnetic Door and Guard Monitoring
Magnetic door switch systems use a sensor mounted on the fixed machine structure and a corresponding magnetic actuator mounted on the movable guard or door. As the actuator enters the sensing zone, the magnetic field causes the switch contacts to change state, allowing the connected control or monitoring system to determine whether the door or guard is in the required position.
The EMAS SMS11RC2-S15 combines 1NC + 1NO contacts with a 5 mm sensing distance and integrated LED indication. Its compact 22 mm format is suited to installations where space is limited, while the right-exit 2 m cable provides a practical wiring arrangement for compatible machinery layouts.
Typical Applications
- Industrial machine-door monitoring.
- Protective machine-guard position detection.
- Hinged and sliding access doors.
- Packaging and assembly machinery.
- Automated manufacturing equipment.
- Conveyor and material handling systems.
- Protective enclosures and access panels.
- Industrial automation and machine monitoring systems.
