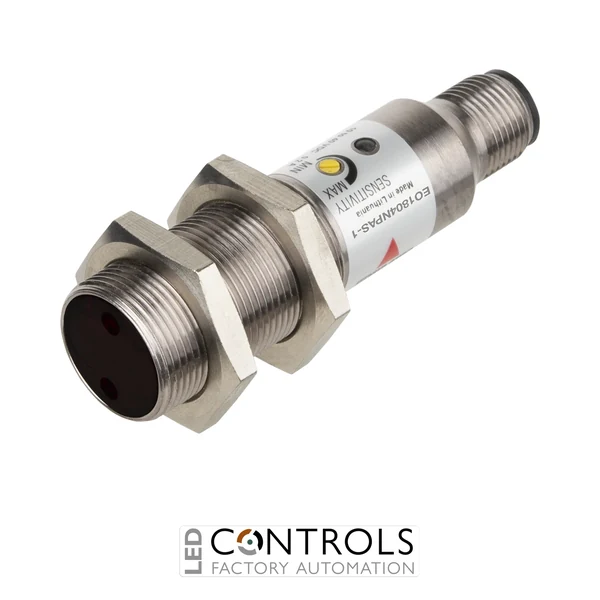

eo1804npas-1 - photo dr met m18 npn no+nc,plg

eo1804npas-1 – photo dr met m18 npn no+nc,plg

Carlo Gavazzi EO1804NPAS-1 is an M18 diffuse-reflective photoelectric sensor with an adjustable 0–400 mm sensing range, NPN NO + NC outputs, 10–40 V DC supply and M12 connector for industrial object detection.

SKU: EO1804NPAS-1Alt SKU: EO1804NPAS1MPN: EO1804NPAS-1
Price
List Price £78.96 ex VAT
Your Price (ex VAT)
£78.96
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £78.96
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 5

£78.96

Why Choose the Carlo Gavazzi EO1804NPAS-1 Photoelectric Sensor?

The Carlo Gavazzi EO1804NPAS-1 is a robust M18 diffuse-reflective photoelectric sensor designed for reliable object detection in industrial machinery, conveying and automation systems. Part of the Carlo Gavazzi EO1804 series, it combines a nickel-plated brass threaded barrel housing with complementary NPN normally open and normally closed outputs for flexible integration into DC control circuits.

The EO1804NPAS-1 provides an adjustable sensing range of 0–400 mm using modulated infrared light at 880 nm. Its diffuse-reflective operating principle allows objects to be detected directly from reflected light without requiring a separate reflector or receiver, making installation straightforward across a wide range of machinery applications.

Operating from a 10–40 V DC supply, the sensor supports light-on and dark-on switching, a maximum switching frequency of 120 Hz and load currents up to 200 mA. Its M12 connector, yellow LED indication, IP67 protection and adjustable sensitivity make it particularly suitable for demanding factory automation and material handling environments.

Key Advantages

  • Reliable diffuse-reflective object detection up to 400 mm.
  • Adjustable sensitivity supports accurate setup for different targets.
  • Complementary NPN NO + NC outputs provide flexible control options.
  • Durable M18 nickel-plated brass housing for industrial environments.
  • M12 connector simplifies installation, maintenance and replacement.
  • IP67 protection supports reliable operation around dust and moisture.

Key Features

  • Carlo Gavazzi EO1804 diffuse-reflective photoelectric sensor.
  • 0–400 mm adjustable sensing range.
  • Infrared modulated light, 880 nm.
  • NPN complementary NO + NC outputs.
  • Light-on / dark-on switching.
  • 10–40 V DC rated power supply.
  • Maximum 200 mA load current.
  • Maximum 120 Hz switching frequency.
  • M18 cylindrical threaded metal housing.
  • Yellow LED output indication.
  • M12 plug connection.
  • IP67 degree of protection.

Reliable Diffuse-Reflective Detection for Industrial Automation

Diffuse-reflective photoelectric sensors transmit light towards a target and detect the light reflected directly back from the object. This allows objects to be detected without physical contact and without the separate reflector required by retro-reflective sensing systems.

The Carlo Gavazzi EO1804NPAS-1 combines an adjustable 400 mm sensing range with an M18 metal housing, complementary NPN outputs and an M12 connection. These characteristics make it a practical sensing solution for machine builders and automation engineers requiring flexible object detection in industrial production and material handling equipment.

Typical Applications

  • Conveyor object detection and counting.
  • Packaging and production machinery.
  • Material handling and transfer systems.
  • Industrial component presence detection.
  • Automated assembly equipment.
  • Factory automation and machine control systems.

Technical Specifications

Manufacturer Carlo Gavazzi
Series EO1804
Model EO1804NPAS-1
Product type Diffuse-reflective photoelectric sensor
Housing format Cylindrical threaded M18 barrel
Housing material Nickel-plated brass
Rated operating distance 0–400 mm, adjustable
Light source Infrared modulated light
Wavelength 880 nm
Output technology NPN transistor
Output function Normally open + normally closed (NO + NC)
Sensing mode Light-on / dark-on switching
Rated power supply 10–40 V DC
Maximum load current 200 mA
Maximum switching frequency 120 Hz
Operating temperature -20 to +60 °C
Output indication Yellow LED
Protection rating IP67
Connection type M12 connector
Connector 4-pin
IP Rating IP67
Sensing Principle Photoelectric - diffuse
Sensing Distance 400 mm
Output Function NO + NC
Connection M12 connector

Frequently Asked Questions

What is the Carlo Gavazzi EO1804NPAS-1 used for?

The EO1804NPAS-1 is a diffuse-reflective photoelectric sensor used for non-contact object detection in conveyors, machinery and industrial automation systems.

What is the sensing range of the EO1804NPAS-1?

The sensor provides an adjustable operating distance from 0 to 400 mm, allowing sensitivity to be set for different targets and applications.

What outputs does the EO1804NPAS-1 provide?

The sensor provides complementary NPN normally open and normally closed outputs and supports light-on and dark-on switching.

What supply voltage does the EO1804NPAS-1 require?

The EO1804NPAS-1 operates from a 10–40 V DC supply and supports a load current of up to 200 mA.

How is the EO1804NPAS-1 connected?

The sensor uses a 4-pin M12 connector, providing a convenient industrial connection for installation, maintenance and sensor replacement.

Trusted by Industrial Automation Engineers

Carlo Gavazzi photoelectric sensors are widely used by machine builders and automation engineers for dependable non-contact object detection in industrial machinery, conveying systems and automated production equipment.
