eo1804npas - photo dr met m18 npn no+nc,cab

eo1804npas – photo dr met m18 npn no+nc,cab

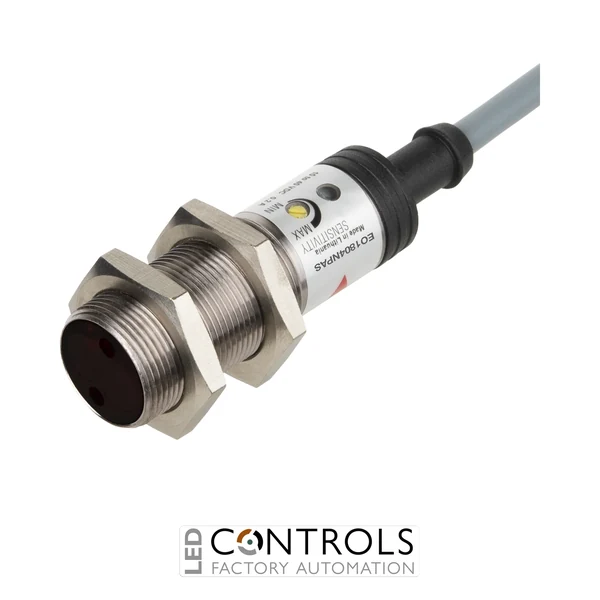

Carlo Gavazzi EO1804NPAS is an M18 diffuse-reflective photoelectric sensor with an adjustable 0–400 mm sensing range, NPN NO + NC outputs, 10–40 V DC supply and 2 m cable for industrial object detection.

SKU: EO1804NPASMPN: EO1804NPAS
Price
List Price £78.96 ex VAT
Your Price (ex VAT)
£78.96
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £78.96
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 5

£78.96

Why Choose the Carlo Gavazzi EO1804NPAS Photoelectric Sensor?

The Carlo Gavazzi EO1804NPAS is a robust M18 diffuse-reflective photoelectric sensor designed for reliable non-contact object detection in industrial machinery, conveyors and automation systems. Part of the Carlo Gavazzi EO1804 series, it combines a durable nickel-plated brass threaded housing with complementary NPN normally open and normally closed outputs for flexible integration into DC control circuits.

The EO1804NPAS provides an adjustable sensing range of 0–400 mm using modulated infrared light at 880 nm. Its diffuse-reflective sensing principle detects light reflected directly from the target, eliminating the need for a separate reflector or receiver and simplifying installation in machinery and production equipment.

Operating from a 10–40 V DC supply, the EO1804NPAS supports light-on and dark-on switching, a maximum switching frequency of 120 Hz and load currents below 200 mA. Its 2 m cable, yellow LED output indication and IP67 protection make it well suited to demanding factory automation, packaging and material handling applications.

Key Advantages

  • Reliable diffuse-reflective object detection up to 400 mm.
  • Adjustable sensing range supports accurate setup for different targets.
  • Complementary NPN NO + NC outputs provide flexible switching options.
  • Durable M18 nickel-plated brass housing for industrial environments.
  • 2 m cable connection supports straightforward machine wiring.
  • IP67 protection provides resistance to industrial dust and moisture.

Key Features

  • Carlo Gavazzi EO1804 diffuse-reflective photoelectric sensor.
  • 0–400 mm adjustable sensing range.
  • Infrared modulated light at 880 nm.
  • NPN complementary NO + NC outputs.
  • Light-on / dark-on switching.
  • 10–40 V DC rated power supply.
  • Load current below 200 mA.
  • Maximum 120 Hz operating frequency.
  • M18 cylindrical threaded metal housing.
  • Yellow LED output indication.
  • 2 m cable connection.
  • IP67 degree of protection.

Reliable Diffuse-Reflective Detection for Industrial Automation

Diffuse-reflective photoelectric sensors transmit light towards a target and detect the light reflected directly back from the object. This enables non-contact detection without the separate reflector required by retro-reflective systems, making installation simple and flexible across a wide range of automated machinery.

The Carlo Gavazzi EO1804NPAS combines an adjustable 400 mm sensing range with a robust M18 metal housing, complementary NPN outputs and a 2 m cable. These characteristics make it a practical choice for machine builders and automation engineers requiring dependable object detection in production, conveying and material handling equipment.

Typical Applications

  • Conveyor object detection and counting.
  • Packaging and production machinery.
  • Material handling and transfer systems.
  • Industrial component presence detection.
  • Automated assembly equipment.
  • Factory automation and machine control systems.

Technical Specifications

Manufacturer Carlo Gavazzi
Series EO1804
Model EO1804NPAS
Product type Diffuse-reflective photoelectric sensor
Housing format Cylindrical threaded M18 barrel
Housing material Nickel-plated brass
Rated operating distance 0–400 mm, adjustable
Light source Infrared modulated light
Wavelength 880 nm
Output technology NPN transistor
Output function Complementary normally open + normally closed (NO + NC)
Sensing mode Light-on / dark-on switching
Rated power supply 10–40 V DC
Load current <200 mA
Maximum operating frequency 120 Hz
Voltage drop ≤2.5 V DC
Operating temperature -20 to +60 °C
Output indication Yellow LED
Protection rating IP67
Connection type Cable
Cable length 2 m
Electrical protection Short-circuit, reverse-polarity and transient protection
IP Rating IP67
Sensing Principle Photoelectric - diffuse
Sensing Distance 400 mm
Output Function NO + NC
Connection Cable

Frequently Asked Questions

What is the Carlo Gavazzi EO1804NPAS used for?

The EO1804NPAS is a diffuse-reflective photoelectric sensor used for non-contact object detection in conveyors, machinery and industrial automation systems.

What is the sensing range of the EO1804NPAS?

The sensor provides an adjustable operating distance from 0 to 400 mm, allowing it to be configured for different targets and applications.

What outputs does the EO1804NPAS provide?

The EO1804NPAS provides complementary NPN normally open and normally closed outputs with light-on and dark-on switching capability.

What supply voltage does the EO1804NPAS require?

The sensor operates from a 10–40 V DC supply and supports load currents below 200 mA.

How is the EO1804NPAS connected?

The EO1804NPAS is supplied with a 2 m cable for direct connection to industrial control and automation wiring.
