Why Choose the Carlo Gavazzi EO1804PPAS Photoelectric Sensor?

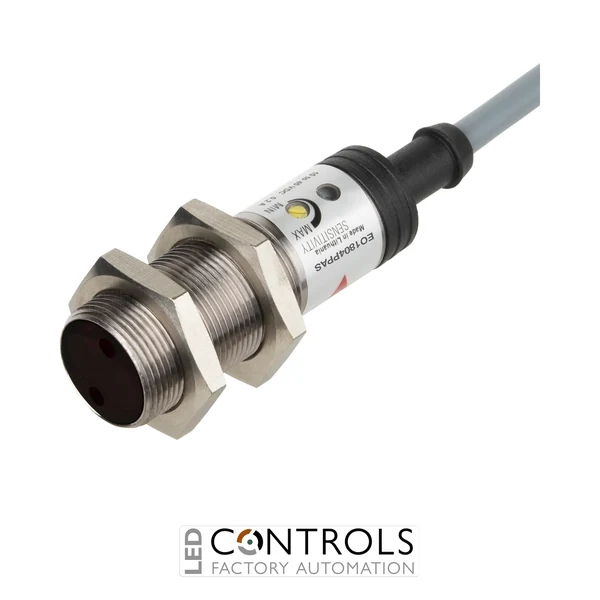

The Carlo Gavazzi EO1804PPAS is a compact and reliable diffuse-reflective photoelectric sensor designed for object detection, presence sensing and position monitoring in industrial automation systems. Featuring a robust threaded M18 metal housing, the sensor uses modulated infrared light to detect objects without requiring a separate reflector or receiver.
This sensor provides a PNP complementary NO+NC output, allowing flexible integration with PLCs, machine controllers and other industrial control equipment. Its adjustable sensing distance of up to 400 mm enables the detection range to be configured for the application, while light/dark switching supports versatile machine-control requirements.
Operating from a wide 10–40 V DC supply, the EO1804PPAS combines a durable IP67-rated construction with an integrated 2 m cable for straightforward installation. Its compact M18 cylindrical design makes it particularly suitable for conveyors, packaging machinery, material-handling equipment and automated production systems where dependable non-contact detection is required.
Key Advantages
- Compact M18 diffuse-reflective photoelectric sensor for industrial automation.
- Adjustable sensing range of up to 400 mm.
- PNP complementary NO+NC outputs provide flexible control integration.
- Modulated 880 nm infrared light provides reliable non-contact object detection.
- Wide 10–40 V DC operating voltage suits common industrial control systems.
- Robust IP67 metal housing withstands demanding industrial environments.
Key Features
- Carlo Gavazzi E.18 photoelectric sensor series.
- Diffuse-reflective sensing principle requiring no separate reflector.
- 0–400 mm rated operating distance.
- PNP output with complementary NO+NC switching.
- 10–40 V DC rated power supply.
- 880 nm modulated infrared light source.
- Light/dark switching functionality.
- 120 Hz operating frequency.
- Integrated 2 m cable connection.
- Threaded cylindrical M18 metal housing.
- IP67 degree of protection.
Reliable Photoelectric Detection for Industrial Automation
Diffuse-reflective photoelectric sensors detect an object by transmitting light towards the target and monitoring the light reflected back to the sensor. This configuration eliminates the need for a separate reflector or receiving unit, helping simplify installation where access or available mounting space is limited.
The Carlo Gavazzi EO1804PPAS combines adjustable sensing, complementary PNP outputs and a rugged metal enclosure to provide dependable object detection in automated machinery. Its infrared light source and compact M18 format make it suitable for detecting products, components and materials across a wide variety of industrial processes.
Typical Applications
- Industrial conveyors and material-handling systems.
- Packaging and production machinery.
- Product presence and position detection.
- Component counting and process monitoring.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- OEM automation and control equipment.
