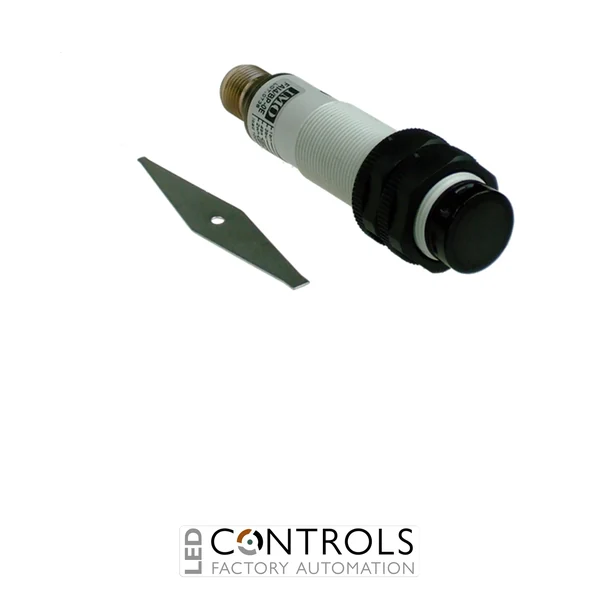

Why Choose the IMO FAI4/BP-0E Photo-Electric Switch?
The IMO FAI4/BP-0E is a compact M18 diffuse-reflection photoelectric switch designed for reliable non-contact object detection in industrial automation, machinery and material handling applications. Using an axial optical arrangement and infrared light, the sensor detects objects directly from reflected light without requiring a separate reflector or receiver.
The FAI4/BP-0E provides an adjustable nominal sensing distance of up to 200 mm using a white reference target, with sensitivity adjustment via an integrated trimmer. Its PNP complementary NO+NC outputs give control-system designers both normally open and normally closed switching functions, while a switching frequency of up to 250 Hz supports responsive detection in automated machinery.
Operating from a 10–30 V DC supply, the sensor incorporates a durable PBT plastic M18 × 1 housing and a convenient 4-pin M12 connector. An IP67 protection rating, electrical protection functions and a broad operating temperature range make the FAI4/BP-0E well suited to demanding industrial sensing applications.
Key Advantages
- Compact M18 diffuse-reflection photoelectric sensor for non-contact object detection.
- Adjustable sensing distance up to 200 mm.
- PNP NO+NC complementary outputs provide flexible control-system integration.
- 10–30 V DC operating voltage suits standard industrial control supplies.
- Convenient 4-pin M12 plug connection simplifies installation and replacement.
- IP67 protection rating supports use in demanding industrial environments.
Key Features
- IMO FA series M18 photoelectric sensor.
- Diffuse-reflection sensing principle.
- 200 mm nominal sensing distance with adjustable sensitivity.
- Infrared 880 nm LED emission.
- PNP complementary NO+NC switching outputs.
- 250 Hz switching frequency.
- 10–30 V DC operating supply.
- 100 mA maximum load current.
- Axial optics in an M18 × 1 PBT housing.
- 4-pin M12 plug connection.
- IP67 environmental protection.
Reliable Non-Contact Detection for Industrial Automation
Diffuse-reflection photoelectric sensors transmit light towards a target and detect the portion reflected back from its surface. Because the emitter and receiver are contained within the same sensor housing, no separate reflector or receiving unit is required, helping simplify installation where short-range object detection is needed.
The IMO FAI4/BP-0E combines adjustable sensitivity with complementary PNP outputs and a compact M18 format. Short-circuit, overvoltage and reverse-polarity protection help safeguard the sensor electrically, while its IP67 PBT housing provides a robust solution for continuous use on industrial machinery and automated production equipment.
Typical Applications
- Industrial conveyor and material handling systems.
- Packaging and production machinery.
- Object and component presence detection.
- Counting and positioning applications.
- Assembly and automated manufacturing equipment.
- OEM machinery and industrial automation systems.
