Why Choose the IMO FAI8/BP-0E Photoelectric Sensor?

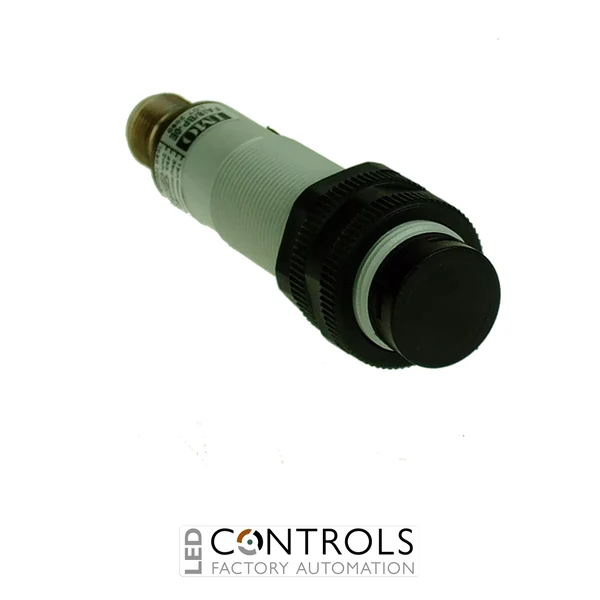

The IMO FAI8/BP-0E is a compact and reliable M18 diffuse reflection photoelectric sensor designed for accurate object detection in industrial automation and machine control applications. As part of the IMO FA photoelectric sensor series, it provides dependable sensing performance with a durable PBT plastic housing, axial optics and flexible integration for modern industrial systems.
This sensor uses infrared diffuse reflection technology to detect objects without requiring a separate reflector or receiver. Its adjustable sensing distance, PNP NO + NC complementary output configuration and M12 connector make it suitable for a wide range of industrial detection tasks.
With a sensing distance of 1 m, a 10–30 V DC supply and IP67 protection rating, the FAI8/BP-0E is designed for dependable operation in demanding industrial environments including machinery, production lines and automated handling systems.
Key Advantages
- Compact M18 diffuse reflection photoelectric sensor for industrial automation.
- 1 m adjustable sensing distance for reliable object detection.
- Infrared LED technology provides consistent sensing performance.
- PNP NO + NC complementary output provides flexible control integration.
- IP67 protection rating supports use in demanding environments.
- M12 4-pin connector enables simple installation and maintenance.
Key Features
- IMO FA photoelectric sensor series.
- M18 cylindrical diffuse reflection design.
- Infrared LED emission.
- 1 m nominal sensing distance.
- 10–30 V DC operating voltage.
- PNP NO + NC complementary switching output.
- Sensitivity adjustment via trimmer.
- 4-pin M12 connector connection.
- PBT plastic housing for industrial applications.
- 250 Hz switching frequency.
Reliable Object Detection for Industrial Automation
Photoelectric sensors such as the IMO FAI8/BP-0E provide accurate non-contact detection by using emitted infrared light to identify the presence of objects. This allows faster machine operation, improved process control and reduced mechanical wear compared with traditional contact-based switches.
The FAI8/BP-0E is designed for integration into industrial machinery, production equipment and automated systems where reliable sensing, compact installation and environmental protection are required.
Typical Applications
- Industrial automation equipment.
- Packaging and production machinery.
- Material handling systems.
- Assembly and manufacturing lines.
- Machine monitoring and object detection.
- OEM control and automation systems.
