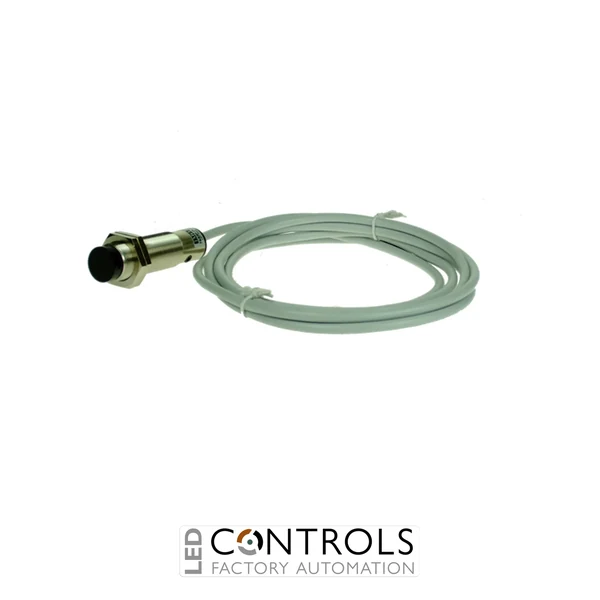

Why Choose the IMO FAI8/BP-1A Diffuse Reflective Photoelectric Sensor?
The IMO FAI8/BP-1A is a compact and reliable M18 diffuse reflective photoelectric sensor designed for accurate non-contact object detection in industrial automation and machine control applications. As part of the IMO FA series photoelectric sensors, it provides dependable detection performance using infrared light technology with a robust cylindrical housing for demanding industrial environments.
This sensor features an M18 cylindrical housing, PNP transistor output and a 2 m cable connection for straightforward installation. The diffuse reflective sensing principle detects objects by measuring reflected light from the target surface, eliminating the need for separate reflectors or receivers.
With a 1 m sensing range, 10–30 V DC supply, PNP output, infrared LED light source and IP67 protection, the FAI8/BP-1A is ideal for conveyors, packaging machinery, production equipment and industrial automation systems.
Key Advantages
- Reliable diffuse reflective photoelectric sensor for industrial automation.
- 1 m detection range suitable for versatile object sensing applications.
- PNP output configuration for straightforward PLC integration.
- M18 cylindrical housing for simple machine installation.
- 2 m cable connection simplifies wiring and commissioning.
- IP67 protection suitable for demanding industrial environments.
Key Features
- IMO FA series photoelectric sensor.
- Diffuse reflective sensing technology.
- M18 axial optical design.
- PNP transistor output.
- Normally open switching function.
- 1 m rated sensing distance.
- Infrared LED light source.
- 10–30 V DC operating voltage.
- 2 m cable connection.
- Adjustable sensitivity.
Reliable Object Detection for Industrial Automation
Diffuse reflective photoelectric sensors such as the IMO FAI8/BP-1A detect objects by measuring reflected infrared light from the target surface. This provides a simple and effective sensing solution without requiring a separate reflector or receiver.
The FA series combines compact M18 construction, adjustable sensitivity and robust electrical protection to deliver dependable performance in production machinery, conveyors and automated systems.
Typical Applications
- Industrial conveyor systems.
- Packaging machinery.
- Production line monitoring.
- Material handling equipment.
- Machine automation systems.
- Object presence detection applications.
