Why Choose the IMO FARP/BP-1E Photoelectric Retro-Reflective Sensor?

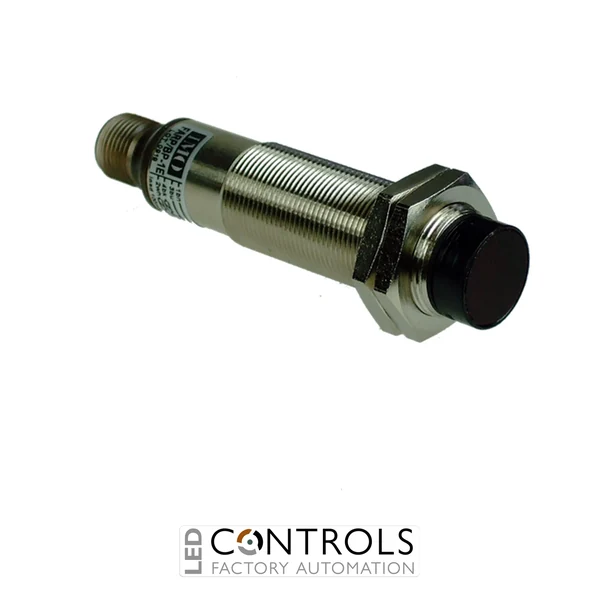

The IMO FARP/BP-1E is a compact and reliable M18 polarized retro-reflective photoelectric switch designed for accurate object detection in industrial automation, packaging and material handling applications. Featuring a robust threaded M18 metal housing, PNP NO+NC output configuration and M12 plug connection, this sensor provides dependable switching performance in demanding industrial environments.
Designed for use with a compatible reflector, the FARP/BP-1E uses polarized red LED optical technology to detect reflective targets while reducing interference from shiny surfaces. Its compact cylindrical design, IP67 protection rating and fast response time make it suitable for a wide range of machine automation and production applications.
With a 4 m sensing distance, 10–30 V DC supply, PNP NO+NC output and M12 4-pin plug connection, the FARP/BP-1E delivers reliable presence detection for industrial control systems.
Key Advantages
- Polarized retro-reflective photoelectric sensor for accurate object detection.
- 4 m sensing range suitable for industrial automation applications.
- PNP NO+NC complementary output for flexible control integration.
- M18 threaded metal housing provides robust mechanical protection.
- IP67 protection rating enables reliable operation in industrial environments.
- Fast switching response supports high-speed automation processes.
Key Features
- IMO M18 photoelectric sensor series.
- Polarized retro-reflective sensing principle.
- 4 m nominal sensing distance with RL110 reflector.
- Red LED emission (660 nm).
- PNP NO+NC switching output.
- 10–30 V DC operating voltage.
- 250 Hz switching frequency.
- 2 ms response time.
- M12 4-pin plug connection.
- Short-circuit, overvoltage and reverse polarity protection.
Reliable Object Detection for Industrial Automation
Photoelectric sensors provide fast and contactless detection by using a controlled light beam between the sensor and reflector. The IMO FARP/BP-1E detects changes in reflected light and converts them into reliable switching signals for automated machinery and control equipment.
The M18 FA series is designed for industrial applications requiring dependable sensing, compact installation and resistance to harsh operating conditions. The polarized retro-reflective design improves detection reliability when working with reflective targets and moving objects.
Typical Applications
- Industrial conveyor systems.
- Packaging machinery.
- Material handling equipment.
- Assembly and production lines.
- Machine automation systems.
- Object presence and position detection applications.
