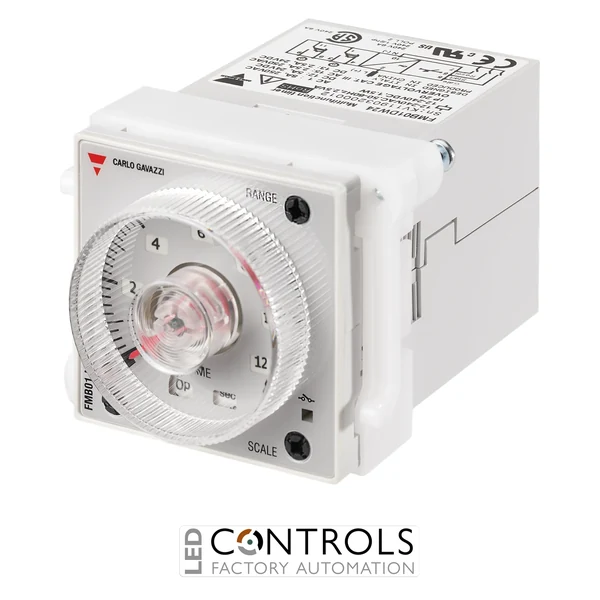

Carlo Gavazzi FMB01DW24 is a 48 × 48 mm multifunction timer relay with seven selectable timing functions, a 0.05 s to 300 h timing range, 12–240 V AC/DC supply, two changeover relay outputs and an 11-pin plug-in connection.
£83.35
The Carlo Gavazzi FMB01DW24 is a versatile multifunction timer relay designed for industrial automation and control applications requiring adjustable timing functions from 0.05 s to 300 h. Part of the FMB01 series, it combines a compact 48 × 48 mm front-panel format with an 11-pin plug-in connection.
The FMB01DW24 provides seven selectable timing functions, including delay on operate, delay on release, interval, interval on trigger open, double interval and symmetrical recycler modes. Front-mounted rotary controls allow the required operating mode, time range and timing value to be selected directly at the timer.
A wide 12–240 V AC/DC supply range simplifies integration across different industrial control voltages, while the DPDT / 2 changeover relay output is rated up to 8 A at 250 V AC. LED indication provides convenient visual monitoring of power and relay status during operation.
Multifunction timer relays provide adjustable time-dependent switching functions within industrial control systems. The Carlo Gavazzi FMB01DW24 allows the operating mode, timing range and required delay to be selected from its front controls, enabling one device to perform several timing duties that would otherwise require multiple dedicated timer types.
Its broad 0.05 s to 300 h timing range makes it suitable for both short machine sequencing delays and long-duration control functions. Combined with the universal AC/DC supply and two changeover relay outputs, the FMB01DW24 provides a flexible timing solution for control panels, machinery and automated equipment.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | FMB01 |
| Model / MPN | FMB01DW24 |
| SKU | FMB01DW24 |
| Product type | Multifunction timer relay |
| Timing functions | 7 |
| Delay on operate | Yes |
| Delay on release | Yes |
| Interval | Yes |
| Interval on trigger open | Yes |
| Double interval | Yes |
| Symmetrical recycler OFF first | Yes |
| Symmetrical recycler ON first | Yes |
| Timing range | 0.05 s to 300 h |
| Supply voltage | 12–240 V AC/DC |
| Nominal frequency | 45–65 Hz |
| Output | 2 changeover relays / DPDT |
| Contact rating | 8 A at 250 V AC |
| Trigger input | Manual |
| Connection | 11-pin plug-in |
| Mounting | Front panel / socket |
| Front dimensions | 48 × 48 mm |
| Timing adjustment | Rotary knob |
| Time setting accuracy | ±5% of full scale |
| Repeatability | ±0.2% of full scale or ±200 ms |
| LED indication | Power supply and relay status |
| Barcode | 8030956039252 |
The FMB01DW24 is a multifunction industrial timer relay with selectable timing modes, an adjustable timing range and two changeover relay outputs.
The Carlo Gavazzi FMB01DW24 provides an adjustable timing range from 0.05 s to 300 h, allowing it to handle both short and long-duration timing applications.
The FMB01DW24 supports a wide 12–240 V AC/DC supply range, making it suitable for integration into many industrial control systems.
The FMB01DW24 provides two changeover relay outputs, also described as a DPDT contact configuration, with contacts rated up to 8 A at 250 V AC.
The FMB01DW24 provides seven selectable timing functions, including delay on operate, delay on release, interval, double interval, interval on trigger open and symmetrical recycler modes.
The timer uses an 11-pin plug-in connection and is designed for front-panel or compatible socket installation.
The FMB01DW24 uses a compact 48 × 48 mm front-panel housing, making it suitable for industrial control panels where space-efficient timing control is required.
Carlo Gavazzi control and automation products are widely used by machine builders, control-panel manufacturers, system integrators and industrial maintenance teams for dependable timing, sensing, monitoring and control applications.
