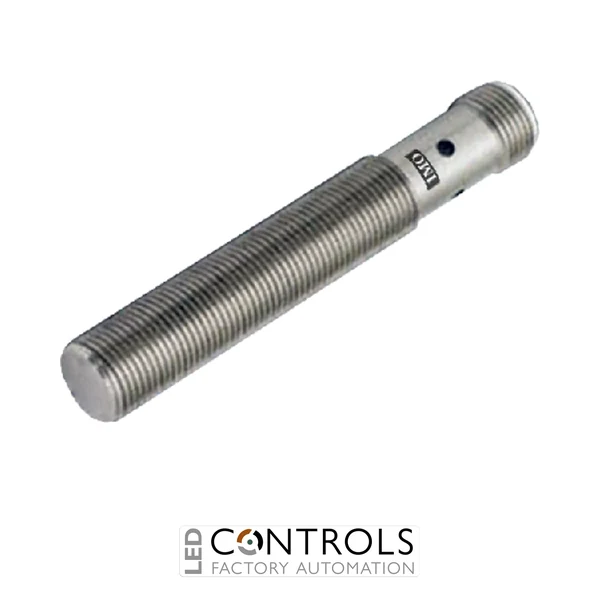

Why Choose the IMO FMM6/CP-3H Inductive Proximity Sensor?
The IMO FMM6/CP-3H is a robust M12 full-metal inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation, machinery and process equipment. The FM range features AISI 316L stainless steel construction, including the active sensing face, providing a durable solution for demanding industrial installations.
The FMM6/CP-3H provides an enhanced nominal sensing distance of 3 mm, with a specified operating distance of 0–2.43 mm. Its shielded M12 construction enables flush mounting into suitable metal surroundings, making it particularly useful for machine position sensing and component detection where compact installation is required.
Operating from a 10–30 V DC supply, the sensor provides a PNP normally closed (NC) output capable of switching loads up to 200 mA. A 200 Hz switching frequency, M12 plug connection, yellow output-state LED and IP67 / IP68 / IP69K protection provide reliable performance across demanding industrial automation applications.
Key Advantages
- Compact M12 full-metal inductive proximity sensor for industrial automation.
- 3 mm enhanced nominal sensing distance for reliable metallic target detection.
- PNP normally closed output for compatible PLC and machine control inputs.
- Shielded construction supports flush mounting into suitable surrounding metal.
- AISI 316L stainless steel housing and active sensing face provide robust mechanical construction.
- 200 Hz switching frequency supports responsive position and presence detection.
- IP67, IP68 and IP69K protection supports demanding industrial installations.
- M12 plug connection simplifies installation, maintenance and replacement.
Key Features
- IMO FM full-metal inductive proximity sensor range.
- M12 × 1 cylindrical barrel.
- Shielded / flush-mountable installation.
- 3 mm nominal sensing distance.
- 0–2.43 mm operating distance.
- PNP normally closed (NC) output.
- 10–30 V DC operating voltage.
- Maximum load current of 200 mA.
- 200 Hz switching frequency.
- Yellow LED output-state indication.
- M12 plug connection.
- AISI 316L stainless steel housing and active sensing face.
- Automatic-reset short-circuit protection.
- Reverse-polarity and inductive-load protection.
- IP67 / IP68 / IP69K protection.
Reliable Non-Contact Metal Detection
Inductive proximity sensors such as the IMO FMM6/CP-3H detect metallic targets without requiring physical contact. The sensor generates an electromagnetic field at its active sensing face, and the presence of a suitable metallic object alters this field, causing the electronic PNP output to change state. This non-contact operating principle helps minimise mechanical wear during repetitive machine cycles.
The FMM6/CP-3H combines a 3 mm nominal sensing distance with compact M12 full-metal construction and a normally closed PNP output. Its shielded design supports flush mounting, while the stainless steel construction and high ingress protection make it particularly suitable for machinery where durability, contamination resistance and dependable sensing are important.
Typical Applications
- Metal component presence detection.
- Machine position and end-of-travel sensing.
- Industrial automation and assembly equipment.
- Conveyor and material handling systems.
- Production and packaging machinery.
- Washdown and demanding industrial environments.
- Position monitoring of metallic machine components.
- OEM machinery and automated production systems.
