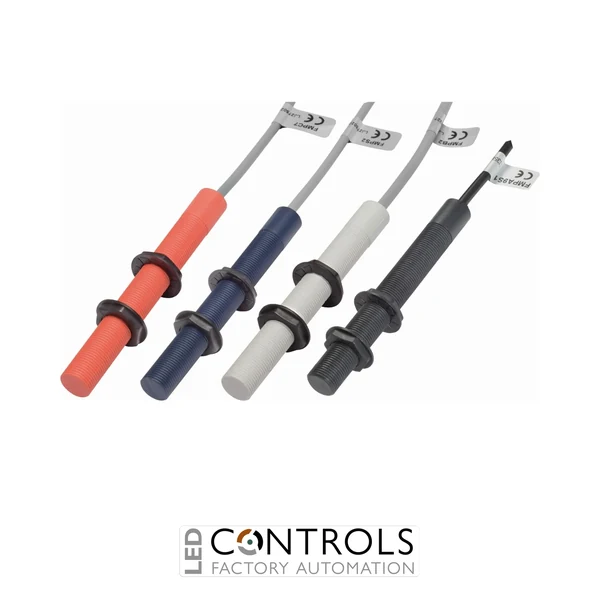

Carlo Gavazzi FMPC7 is an M12 × 1 cylindrical magnetic proximity sensor with a normally closed reed output, 23 mm maximum switching distance, 2 m cable and IP67 protection for reliable non-contact industrial position detection.
£42.20
The Carlo Gavazzi FMPC7 is a compact magnetic proximity sensor from the FMP series, designed for reliable non-contact position and presence detection in industrial automation applications. It uses a reed-switch sensing principle within a cylindrical threaded plastic housing, providing simple and dependable magnetic target detection without mechanical contact.
The FMPC7 features a normally closed (NC) reed output with a maximum switching current of 500 mA and maximum switching voltage of 120 V AC/DC. Its specified maximum switching distance is 23 mm, allowing suitable magnetic targets to be detected while maintaining physical separation between the sensor and moving equipment.
With an M12 × 1 threaded cylindrical housing, integral 2 m cable and IP67 protection, the FMPC7 provides a compact solution for machine positioning, automation and equipment-monitoring applications. An operating temperature range of -25 °C to +75 °C supports use across a wide variety of industrial environments.
The Carlo Gavazzi FMPC7 detects an appropriate magnetic target using a reed-switch sensing element, allowing position or presence to be monitored without direct physical contact between the sensor and moving component. This non-contact operating principle reduces mechanical wear and makes magnetic sensors particularly useful for repetitive industrial positioning applications.
Its 23 mm maximum switching distance, normally closed output and M12 threaded construction make the FMPC7 suitable for integration into machinery and automated systems. The IP67 enclosure and wide operating temperature range further support reliable use in industrial environments where dust, moisture and changing ambient conditions may be present.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | FMP |
| Model / MPN | FMPC7 |
| SKU | FMPC7 |
| Product type | Magnetic proximity sensor |
| Sensing principle | Magnetic reed switch |
| Output function | Normally closed (NC) |
| Housing type | Cylindrical threaded barrel |
| Housing material | Plastic |
| Housing size | M12 × 1 |
| Connection | Integral cable |
| Cable length | 2 m |
| Maximum switching voltage | 120 V AC/DC |
| Maximum switching current | 500 mA |
| Maximum switching power | 10 VA |
| Maximum switching distance | 23 mm |
| Operating temperature | -25 °C to +75 °C |
| Protection rating | IP67 |
| EAN | 8032529965807 |
The FMPC7 is an M12 cylindrical magnetic proximity sensor that uses a reed switch to provide non-contact position or presence detection in industrial applications.
The FMPC7 has a normally closed (NC) reed-switch output with a maximum switching current of 500 mA.
The FMPC7 has a specified maximum switching distance of 23 mm when used with an appropriate magnetic target and installation arrangement.
The FMPC7 supports a maximum switching voltage of 120 V AC/DC and a maximum switching power of 10 VA.
The FMPC7 uses a cylindrical threaded plastic housing with an M12 × 1 thread.
The FMPC7 is supplied with an integral 2 m cable for connection to the associated industrial control circuit.
The Carlo Gavazzi FMPC7 has an IP67 protection rating, supporting installation in industrial environments when correctly mounted and connected.
The specified operating temperature range is -25 °C to +75 °C.
Carlo Gavazzi sensing products are widely used by machine builders, control-panel manufacturers, system integrators and industrial maintenance teams for dependable detection, monitoring and automation applications.
