Why Choose the IMO FS6I/0B-050-59-1F Fork Sensor?

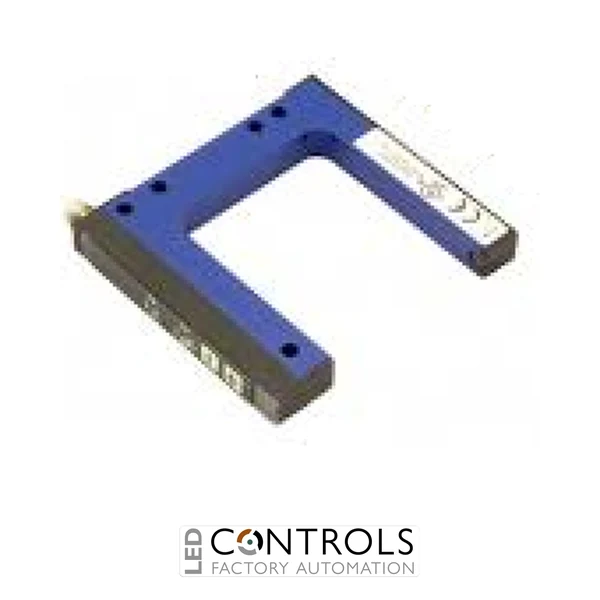

The IMO FS6I/0B-050-59-1F is a high-speed photoelectric fork sensor designed for accurate detection of small objects, edges and moving materials in industrial automation systems. Its fork-shaped construction integrates the emitter and receiver into one rigid housing, maintaining precise optical alignment and simplifying installation compared with separate through-beam sensors.
This FS6 Series model provides a 50 mm fork width and 59 mm detection depth, with modulated infrared emission and detection of objects as small as 0.2 mm. Sensitivity can be adjusted directly using the integrated +/- push-buttons, while light-on or dark-on switching can also be selected by button.
Operating from 12/24 V DC, the FS6I/0B-050-59-1F provides selectable NPN/PNP digital output, a fast 10 kHz switching frequency and an M8 4-pin plug connection. Its painted aluminium and polyamide/glass construction and IP65 protection make it particularly suitable for high-speed positioning, counting, web monitoring and small-object detection on automated machinery.
Key Advantages
- 50 mm fork width provides a defined optical sensing path without separate emitter/receiver alignment.
- Detects objects as small as 0.2 mm for precise automation applications.
- 10 kHz switching frequency supports high-speed object detection and counting.
- Simple sensitivity adjustment using integrated +/- push-buttons.
- Light-on / dark-on operation can be selected using the sensor controls.
- Selectable NPN/PNP digital output provides flexibility when integrating with PLC and machine-control inputs.
- 12/24 V DC supply suits standard industrial automation systems.
- M8 4-pin connector enables convenient sensor wiring and replacement.
- Metal-based housing provides robust construction for industrial machinery.
Key Features
- IMO FS6 Series photoelectric fork sensor.
- 50 mm sensing fork width.
- 59 mm fork detection depth.
- Modulated infrared LED emission.
- 0.2 mm minimum detectable object.
- Manual sensitivity adjustment by +/- buttons.
- Selectable light-on / dark-on switching.
- Selectable NPN/PNP digital output.
- 10 kHz switching frequency.
- 12/24 V DC operating voltage.
- Reverse-polarity power-supply protection.
- Short-circuit output protection.
- M8 4-pin plug connection.
- Painted aluminium and polyamide/glass construction.
- IP65 protection according to EN 60529.
High-Speed Precision Detection for Automated Machinery
Fork sensors combine an optical emitter and receiver within a single U-shaped housing, creating a precisely aligned sensing beam across the fork opening. When an object passes through this optical path, the sensor changes its output state. This arrangement eliminates the alignment work associated with separate through-beam photoelectric sensors and provides repeatable detection on fast-moving machinery.
With its 50 mm opening, 0.2 mm minimum detectable object size and 10 kHz switching frequency, the IMO FS6I/0B-050-59-1F is particularly useful for detecting small or rapidly moving parts. Adjustable sensitivity and selectable light-on/dark-on operation further simplify commissioning for different materials and machine-control requirements.
Typical Applications
- High-speed object detection and counting.
- Edge and position detection on automated machinery.
- Packaging and labelling equipment.
- Web, sheet and continuous-material monitoring.
- Small-component detection on assembly machinery.
- Conveyor product detection.
- Feed and positioning systems.
- Printing, converting and processing machinery.
- Industrial automation requiring precise through-beam detection.
