Why Choose the IMO FS6I/0B-080-59-1F Fork Sensor?

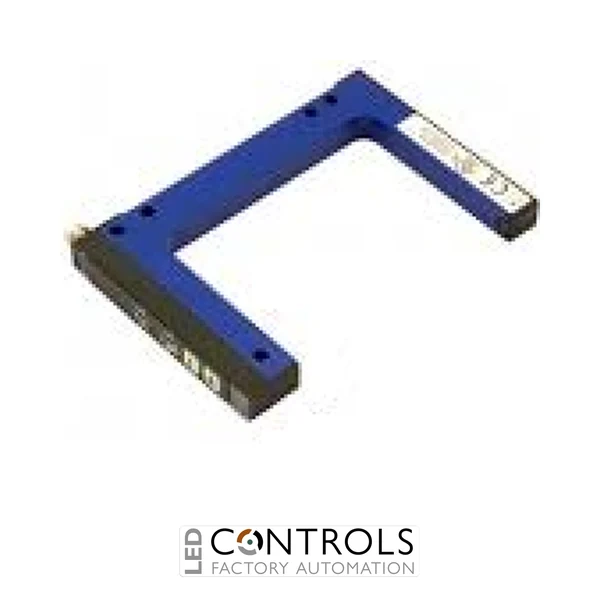

The IMO FS6I/0B-080-59-1F is an adjustable photoelectric fork sensor designed for precise detection of objects, edges and moving materials in industrial automation systems. Its fork-shaped construction integrates the optical emitter and receiver into a single rigid assembly, providing reliable alignment and simplifying installation compared with separate through-beam sensors.
This FS6 Series model features an 80 mm fork width with a 59 mm detection depth, providing a generous sensing opening for components and materials passing through the sensor. The integrated optical arrangement makes it particularly suitable for repeatable detection on automated production, packaging, printing and material-handling machinery.
The FS6I/0B-080-59-1F combines adjustable sensing with a selectable PNP/NPN output and compact M8 plug connection. Its industrial fork design provides a practical solution where accurate object detection and straightforward mechanical alignment are important for reliable machine operation.
Key Advantages
- 80 mm fork width accommodates a broad range of components and moving materials.
- 59 mm detection depth provides a substantial working area within the fork.
- Integrated emitter and receiver maintain fixed optical alignment.
- Adjustable sensing enables commissioning for different detection requirements.
- Selectable PNP/NPN output provides flexibility when interfacing with industrial control systems.
- Fork-style through-beam detection supports precise and repeatable object sensing.
- M8 plug connection simplifies wiring, installation and sensor replacement.
- Well suited to high-speed automated machinery and production equipment.
Key Features
- IMO FS6 Series photoelectric fork sensor.
- 80 mm sensing fork width.
- 59 mm detection depth.
- 70 mm mounting width.
- Integrated optical emitter and receiver.
- Adjustable sensing configuration.
- Selectable PNP/NPN output.
- Compact industrial fork construction.
- M8 × 1 plug connection.
- Designed for precise object, edge and position detection.
- Suitable for industrial automation and machine-control applications.
Precise Fork Detection for Industrial Automation
Photoelectric fork sensors combine the emitter and receiver in opposite arms of a single U-shaped housing, creating a permanently aligned sensing path across the fork opening. An object passing between the two arms interrupts the optical beam and causes the sensor output to change state. This integrated arrangement reduces alignment requirements and makes fork sensors particularly effective for repetitive machine processes.
With an 80 mm fork width and 59 mm detection depth, the IMO FS6I/0B-080-59-1F provides ample clearance for products and materials while maintaining a defined optical detection path. Its adjustable sensing and selectable PNP/NPN output make it adaptable to a variety of PLC, machine-control and automated production applications.
Typical Applications
- High-speed object detection and counting.
- Edge and position detection on automated machinery.
- Packaging and labelling equipment.
- Web, sheet and continuous-material monitoring.
- Component detection on assembly machinery.
- Conveyor product detection.
- Feed and positioning systems.
- Printing and converting machinery.
- Industrial automation requiring accurately aligned through-beam sensing.
