Why Choose the Carlo Gavazzi IA12CLN04UCM1 Inductive Proximity Sensor?

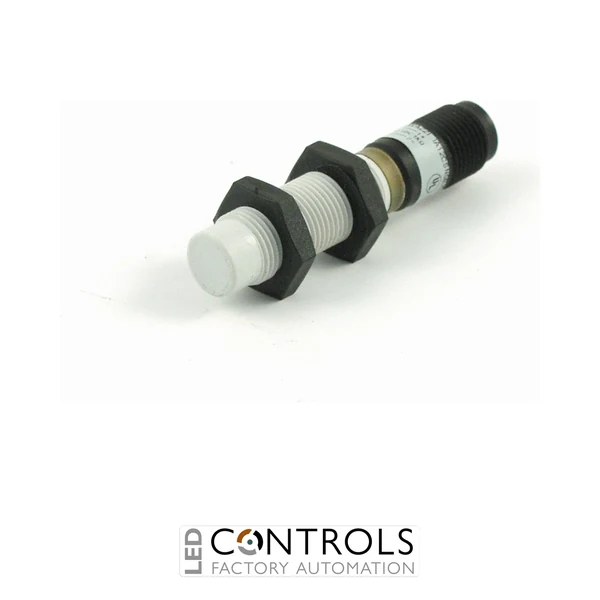

The Carlo Gavazzi IA12CLN04UCM1 is a compact and reliable M12 NAMUR inductive proximity sensor designed for non-contact detection of metallic targets in industrial machinery and automation systems. As part of the Carlo Gavazzi IA series, it features a long cylindrical thermoplastic polyester housing and an M12 connector for convenient integration into industrial sensing circuits.
This sensor uses inductive sensing technology to detect metal objects without physical contact, helping to reduce mechanical wear while providing dependable position and presence detection. Its NAMUR normally closed (NC) output is designed for compatible NAMUR interface equipment, while the non-flush mounting arrangement provides an extended nominal sensing distance.
With a nominal sensing distance of 4 mm, a rated operating voltage of 7–9 V DC and a maximum operating frequency of 1.2 kHz, the IA12CLN04UCM1 is well suited to repetitive industrial sensing duties. The M12 plug connection, IP67 protection and operating temperature range of -25 to +70 °C support reliable installation in demanding machinery and automation environments.
Key Advantages
- Reliable non-contact detection of metallic objects for industrial automation.
- 4 mm nominal sensing distance in a compact M12 sensor format.
- NAMUR normally closed output for compatible interface and control equipment.
- Non-flush mounting configuration for extended sensing range.
- M12 plug connection simplifies sensor installation, replacement and maintenance.
- Durable thermoplastic polyester housing with IP67 environmental protection.
Key Features
- Carlo Gavazzi IA series inductive proximity sensor.
- M12 × 1 cylindrical threaded housing.
- Long-body sensor design.
- 4 mm nominal sensing distance.
- NAMUR NC output function.
- 7–9 V DC rated operating voltage.
- 1.2 kHz maximum operating frequency.
- Non-flush / unshielded mounting configuration.
- M12 connector for detachable field wiring.
- Yellow LED output indication.
- IP67 protection rating.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field at the sensing face and monitoring the change produced when conductive material enters that field. This contactless operating principle eliminates the need for mechanical switching contact with the target, making inductive sensors particularly suitable for repetitive position, presence and movement detection in automated machinery.
The Carlo Gavazzi IA12CLN04UCM1 combines a 4 mm sensing range with NAMUR signalling, non-flush mounting and a convenient M12 connector. Its thermoplastic polyester housing, IP67 protection and wide industrial operating temperature range make it a practical choice for machine builders and automation engineers requiring a compact M12 metal-detection sensor.
Typical Applications
- Machine position and presence detection.
- Industrial automation and control systems.
- Metal component detection on production machinery.
- Conveyor and material handling equipment.
- Packaging and automated assembly machinery.
- Position monitoring of moving machine components.
- Industrial equipment using compatible NAMUR sensor interfaces.
