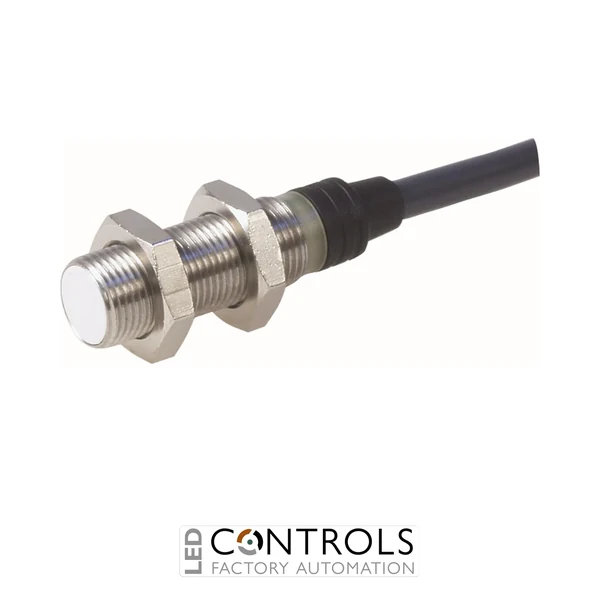

Why Choose the Carlo Gavazzi IA12ESF02UC Inductive Proximity Sensor?
The Carlo Gavazzi IA12ESF02UC is a compact and robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machinery applications. As part of the proven Carlo Gavazzi IA12 series, it combines a stainless steel threaded housing with NAMUR switching technology for dependable position and presence detection.
This sensor uses inductive sensing technology to detect metal targets without physical contact, helping reduce mechanical wear in repetitive industrial processes. Its short-body M12 construction, flush mounting capability and IP67 protection make it particularly suitable for machinery where installation space, durability and reliable sensing performance are important.
With a rated operating distance of 2 mm, a NAMUR normally closed (NC) output and a 7–9 V DC supply, the IA12ESF02UC is designed for integration with compatible NAMUR control and interface equipment. A factory-fitted 2 m cable provides a straightforward electrical connection for industrial installations.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 2 mm rated operating distance for precise industrial position and presence sensing.
- NAMUR normally closed output for compatible industrial control and interface systems.
- Durable stainless steel M12 threaded housing for demanding environments.
- Flush-mountable short-body design supports installation in space-constrained machinery.
- IP67 protection provides resistance to dust and water ingress.
- Factory-fitted 2 m cable simplifies electrical installation.
Key Features
- Carlo Gavazzi IA12 series inductive proximity sensor.
- M12 cylindrical threaded stainless steel housing.
- 2 mm rated sensing distance.
- 7–9 V DC rated power supply.
- NAMUR normally closed (NC) output.
- 9.35 mA maximum output current.
- 1.4 kHz maximum switching frequency.
- Flush-mountable, shielded sensing configuration.
- Short-body construction for compact installations.
- 2 m pre-wired cable connection.
- LED indication for convenient operating-status monitoring.
- Reverse polarity protection for improved installation reliability.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA12ESF02UC detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters the sensing area, the sensor changes its electrical output without requiring mechanical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA12ESF02UC combines this non-contact sensing principle with a NAMUR output for use with compatible industrial interfaces and control equipment. Its stainless steel construction, flush-mountable design, IP67 ingress protection and industrial operating temperature range make it well suited to machine building, process equipment and automated production environments.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- NAMUR-compatible industrial sensing and control systems.
