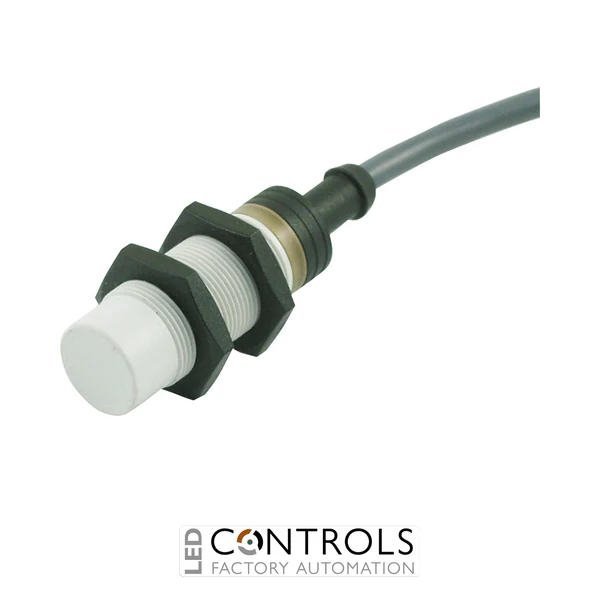

Why Choose the Carlo Gavazzi IA18CLN08UC Inductive Proximity Sensor?
The Carlo Gavazzi IA18CLN08UC is a robust M18 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation, machinery and control applications. Part of the Carlo Gavazzi IA18 series, this sensor combines an extended sensing range with a long cylindrical thermoplastic housing for dependable operation in demanding industrial installations.
The IA18CLN08UC features an 8 mm nominal sensing distance, non-flush mounting and a NAMUR normally closed (NC) output. Its NAMUR interface is designed for connection to compatible switching amplifiers and control equipment, providing reliable metal detection without mechanical contact or associated switching wear.
With a rated operating voltage of 7–9 V DC, a switching frequency of up to 200 Hz and an IP67 protection rating, the IA18CLN08UC is well suited to industrial sensing duties. The sensor uses a 2 m cable connection and a thermoplastic polyester housing, providing a practical installation solution for automated production, material handling and machine-monitoring systems.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical wear.
- Extended 8 mm nominal sensing distance for industrial position and presence detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Non-flush M18 sensing design provides increased detection distance.
- 2 m cable connection supports straightforward hard-wired installation.
- Durable thermoplastic polyester housing for industrial environments.
- IP67 protection helps protect the sensor against dust and water ingress.
Key Features
- Carlo Gavazzi IA18 inductive proximity sensor series.
- M18 cylindrical threaded housing.
- Long-body construction.
- 8 mm rated sensing distance.
- Non-flush mounting.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated operating voltage.
- Maximum switching frequency of 200 Hz.
- 2 m cable electrical connection.
- Thermoplastic polyester housing.
- IP67 degree of protection.
- Yellow LED indication.
- Operating temperature range of -25 °C to +70 °C.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without physical contact, helping eliminate mechanical switching wear while providing repeatable presence and position monitoring. The Carlo Gavazzi IA18CLN08UC combines this contactless operating principle with a NAMUR output for integration with compatible interface devices and industrial control systems.
The sensor's extended 8 mm sensing distance and non-flush M18 configuration make it suitable where additional detection range is beneficial. Its long thermoplastic polyester housing, integral cable connection and IP67 protection support dependable use in machinery, production equipment and automated material-handling installations.
Typical Applications
- Metal component presence and position detection.
- Industrial machinery and automation systems.
- Conveyors and material handling equipment.
- Automated assembly and production machinery.
- Machine tools and positioning systems.
- Packaging and processing equipment.
- NAMUR-compatible industrial sensing circuits.
