Why Choose the Carlo Gavazzi IA18CSN08UC Inductive Proximity Sensor?

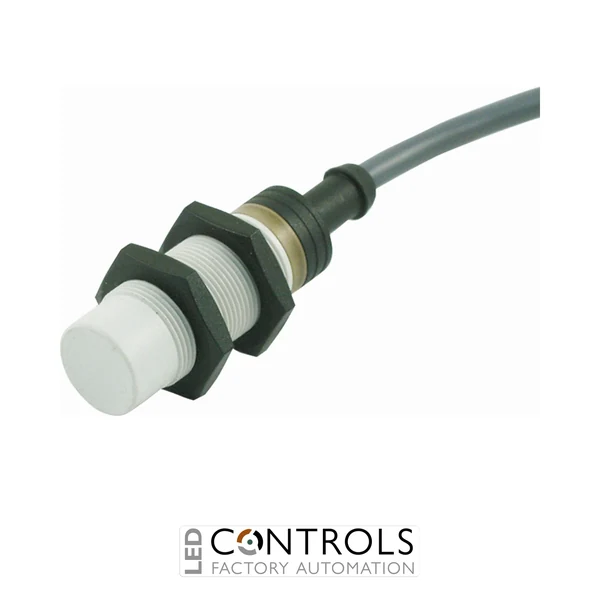

The Carlo Gavazzi IA18CSN08UC is a compact and reliable M18 NAMUR inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. As part of the proven Carlo Gavazzi IA series, it combines a thermoplastic polyester housing with NAMUR switching technology for dependable position, presence and limit detection.
This sensor uses inductive sensing technology to detect metal targets without physical contact, helping reduce mechanical wear and improve reliability in repetitive industrial processes. Its non-flush short-body construction provides an extended sensing range while retaining a compact M18 format, and its IP67-rated housing provides dependable protection against dust and water ingress.
With a nominal sensing distance of 8 mm, a NAMUR normally closed (NC) output and a 7–9 V DC operating supply, the IA18CSN08UC is designed for integration with compatible NAMUR switching amplifiers and industrial control equipment. Its factory-fitted 2 m cable provides a straightforward electrical connection for machine and automation installations.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 8 mm nominal sensing distance provides extended-range detection in an M18 housing.
- NAMUR normally closed (NC) output for compatible industrial control and interface systems.
- Non-flush M18 design supports increased sensing distance for machinery applications.
- Durable thermoplastic polyester housing for industrial environments.
- IP67 protection provides resistance to dust and water ingress.
- Factory-fitted 2 m cable simplifies electrical installation.
Key Features
- Carlo Gavazzi IA series inductive proximity sensor.
- M18 × 1 cylindrical threaded housing.
- 8 mm rated sensing distance.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated operating voltage.
- 9.35 mA maximum output current.
- 200 Hz operating frequency for reliable target detection.
- Non-flush, unshielded sensing configuration.
- Short-body construction for compact machine installations.
- 2 m cable connection for straightforward wiring.
- Yellow LED indication for operating status.
- Robust thermoplastic polyester sensor housing.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA18CSN08UC detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters this field, the sensor changes its electrical state without requiring mechanical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA18CSN08UC combines an extended 8 mm sensing distance with a NAMUR normally closed output for connection to compatible switching amplifiers and control interfaces. Its non-flush M18 format, short-body construction and factory-fitted cable make it particularly suitable for industrial machinery where extended sensing range, reliable operation and straightforward installation are required.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly and manufacturing equipment.
- Machine tools and production lines.
- NAMUR-compatible industrial sensing and control systems.
