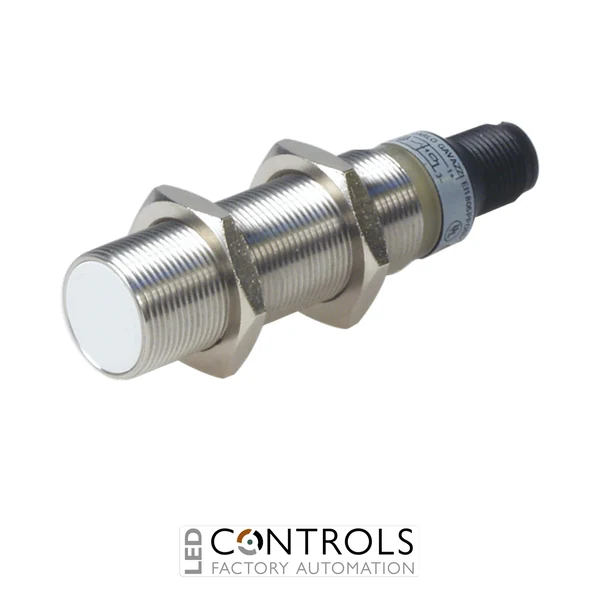

Why Choose the Carlo Gavazzi IA18ELF05UCM1 Inductive Proximity Sensor?
The Carlo Gavazzi IA18ELF05UCM1 is a robust M18 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. Part of the Carlo Gavazzi IA18 series, this sensor combines a durable stainless steel cylindrical housing with a long-body construction for dependable operation in demanding industrial installations.
The IA18ELF05UCM1 provides a 5 mm rated operating distance with flush mounting and a NAMUR normally closed (NC) output. Its NAMUR interface is designed for use with compatible switching amplifiers and control equipment, while the M12 plug-in connection enables convenient installation, servicing and sensor replacement.
Operating from a rated 7–9 V DC supply, the IA18ELF05UCM1 provides a maximum output current of 9.35 mA and a maximum switching frequency of 500 Hz. Its stainless steel M18 housing, IP67 protection and operating temperature range of -25 °C to +70 °C make it a dependable sensing solution for industrial machinery, automated production and material-handling equipment.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical switching wear.
- 5 mm rated sensing distance for accurate industrial position and presence detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Flush-mountable M18 design simplifies integration into machinery and metal structures.
- Durable stainless steel housing for demanding industrial environments.
- M12 plug-in connection supports quick installation and maintenance.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi IA18 inductive proximity sensor series.
- M18 cylindrical threaded stainless steel housing.
- Long-body construction.
- 5 mm rated operating distance.
- Flush / shielded mounting.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated power supply.
- Maximum output current of 9.35 mA.
- Maximum switching frequency of 500 Hz.
- M12 plug-in connection.
- IP67 degree of protection.
- LED indication for convenient operating-status monitoring.
- Reverse-polarity protection.
- Operating temperature range of -25 °C to +70 °C.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact, eliminating mechanical switching wear and supporting reliable operation across high-cycle automation applications. The Carlo Gavazzi IA18ELF05UCM1 combines this contactless sensing principle with a NAMUR NC output for connection to compatible interface devices and industrial control systems.
The combination of a 5 mm sensing distance, flush mounting, stainless steel M18 housing and M12 connection makes the IA18ELF05UCM1 particularly suitable for machinery where durability and convenient servicing are important. Its 500 Hz maximum switching frequency also supports responsive detection in automated positioning and production processes.
Typical Applications
- Metal component presence and position detection.
- Industrial machinery and automation systems.
- Conveyors and material handling equipment.
- Automated assembly and production machinery.
- Machine tools and positioning systems.
- Packaging and processing equipment.
- NAMUR-compatible industrial sensing and control circuits.
