Why Choose the Carlo Gavazzi IA18ELN08UC Inductive Proximity Sensor?

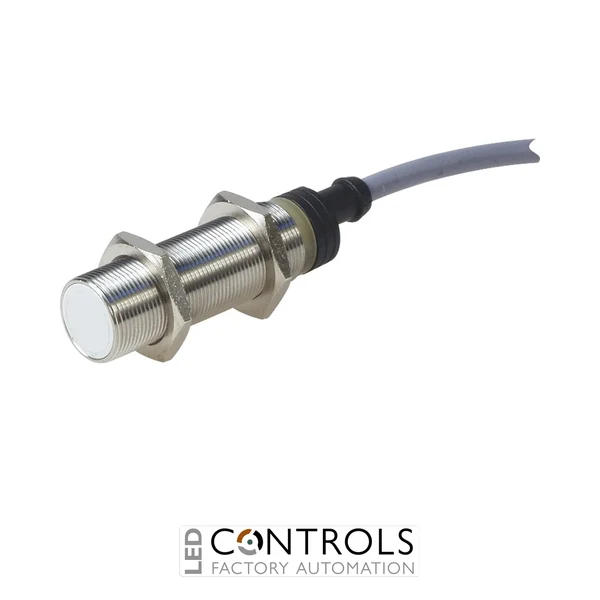

The Carlo Gavazzi IA18ELN08UC is a robust M18 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation, machinery and control applications. Part of the Carlo Gavazzi IA18 series, this long-body sensor combines an 8 mm nominal sensing distance with a durable stainless steel cylindrical threaded housing for demanding industrial installations.
The IA18ELN08UC features a NAMUR normally closed (NC) output and a non-embedded / non-flush sensing arrangement, providing an extended sensing distance for metal target detection. Its integral 2 m cable enables straightforward hard-wired connection to compatible NAMUR switching amplifiers, interface modules and industrial control equipment.
Operating from a rated 7–9 V DC supply, the IA18ELN08UC provides a maximum output current of 9.35 mA and a maximum switching frequency of 200 Hz. Its IP67 protection rating and operating temperature range of -25 °C to +70 °C make it a dependable sensing solution for automated production, positioning and material-handling systems.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical switching wear.
- Extended 8 mm nominal sensing distance for industrial position and presence detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Non-embedded / non-flush sensing configuration provides increased detection range.
- Durable stainless steel M18 housing for demanding industrial environments.
- Integral 2 m cable supports straightforward hard-wired installation.
- IP67 protection helps protect against dust and water ingress.
Key Features
- Carlo Gavazzi IA18 inductive proximity sensor series.
- M18 cylindrical threaded stainless steel housing.
- Long-body construction.
- 8 mm nominal sensing distance.
- Non-embedded / non-flush mounting.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated operating voltage.
- Maximum output current of 9.35 mA.
- Maximum switching frequency of 200 Hz.
- Integral 2 m cable.
- IP67 degree of protection.
- Reverse-polarity protection.
- Operating temperature range of -25 °C to +70 °C.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact, eliminating mechanical switching wear and supporting reliable operation in repetitive automation processes. The Carlo Gavazzi IA18ELN08UC combines this contactless sensing principle with a NAMUR NC output for connection to compatible switching amplifiers and industrial control systems.
The combination of an 8 mm sensing distance, non-embedded sensing arrangement, stainless steel M18 body and integral 2 m cable makes the IA18ELN08UC particularly suitable for industrial machinery where durability and dependable metal detection are important. Its 200 Hz maximum switching frequency provides responsive operation for positioning, presence detection and automated machine sequences.
Typical Applications
- Metal component presence and position detection.
- Industrial machinery and automation systems.
- Conveyors and material handling equipment.
- Automated assembly and production machinery.
- Machine tools and positioning systems.
- Packaging and processing equipment.
- NAMUR-compatible industrial sensing and control circuits.
