Why Choose the Carlo Gavazzi IA18ELN08UCM1 Inductive Proximity Sensor?

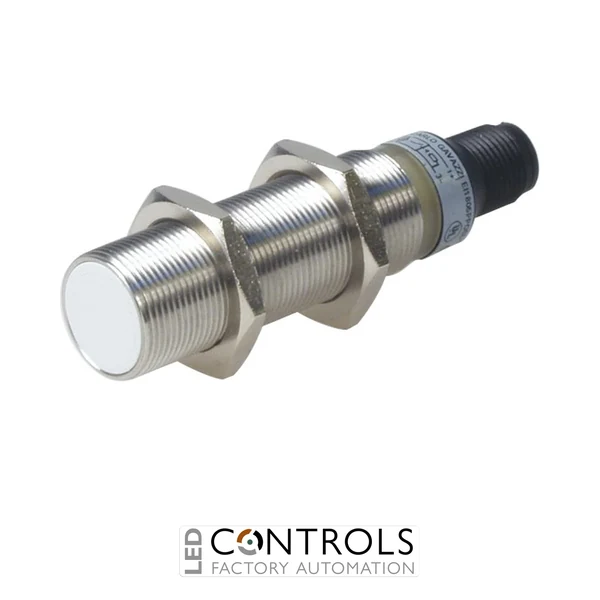

The Carlo Gavazzi IA18ELN08UCM1 is a robust M18 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the proven Carlo Gavazzi IA18 series, it combines a long stainless steel threaded housing with NAMUR switching technology for dependable position, presence and limit detection.
This sensor uses inductive sensing technology to detect metallic targets without physical contact, helping minimise mechanical wear in repetitive industrial processes. Its non-flush sensing configuration provides an extended detection range, while the stainless steel construction and IP67 protection make it well suited to demanding industrial environments.
With a rated operating distance of 8 mm, a NAMUR normally closed (NC) output and a 7–9 V DC rated supply, the IA18ELN08UCM1 is designed for integration with compatible NAMUR switching amplifiers and control equipment. Its M12 plug connection supports convenient installation, maintenance and sensor replacement.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 8 mm rated operating distance provides extended-range sensing in an M18 housing.
- NAMUR normally closed (NC) output for compatible industrial interfaces and control systems.
- Non-flush mounting configuration supports increased sensing distance.
- Durable stainless steel M18 housing for demanding industrial environments.
- IP67 protection provides resistance to dust and water ingress.
- M12 plug connection simplifies installation, maintenance and sensor replacement.
Key Features
- Carlo Gavazzi IA18 series inductive proximity sensor.
- M18 cylindrical threaded stainless steel housing.
- 8 mm rated sensing distance.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated power supply.
- 9.35 mA maximum output current.
- 200 Hz maximum switching frequency.
- Non-flush sensing configuration for extended-range detection.
- Long-body construction for robust industrial installation.
- M12 plug connection for convenient electrical installation.
- LED indication for operating status.
- Reverse polarity protection for improved installation reliability.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA18ELN08UCM1 detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters the sensing area, the sensor changes its electrical state without requiring physical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA18ELN08UCM1 combines an extended 8 mm sensing distance with a NAMUR normally closed output for connection to compatible switching amplifiers and industrial control interfaces. Its stainless steel long-body construction, non-flush sensing arrangement, IP67 protection and M12 connector make it suitable for robust industrial machinery and automated production equipment.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly and manufacturing equipment.
- Machine tools and production lines.
- NAMUR-compatible industrial sensing and control systems.
