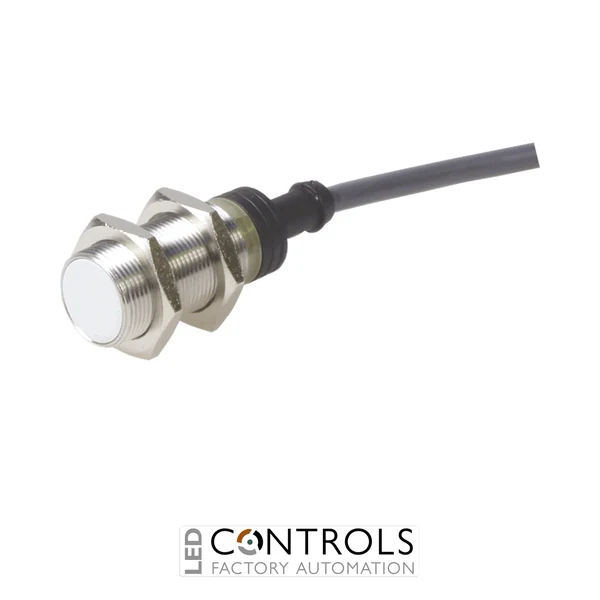

Why Choose the Carlo Gavazzi IA18ESF05UC Inductive Proximity Sensor?
The Carlo Gavazzi IA18ESF05UC is a robust and reliable M18 NAMUR inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. As part of the proven Carlo Gavazzi IA series, it combines a stainless steel cylindrical threaded housing with NAMUR switching technology for dependable position, presence and limit detection.
This sensor uses inductive sensing technology to detect metallic targets without physical contact, helping reduce mechanical wear and improve reliability in repetitive industrial processes. Its flush-mountable short-body construction supports compact installation within machinery, while the durable stainless steel housing and IP67 protection make it suitable for demanding industrial environments.
With a rated operating distance of 5 mm, a NAMUR normally closed (NC) output and a 7–9 V DC rated supply, the IA18ESF05UC is designed for integration with compatible NAMUR switching amplifiers and industrial control equipment. Its factory-fitted 2 m cable provides a straightforward electrical connection for machine and automation installations.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 5 mm rated operating distance for precise industrial position and presence sensing.
- NAMUR normally closed (NC) output for compatible industrial control and interface systems.
- Flush-mountable M18 design supports compact installation within machinery.
- Durable stainless steel housing for demanding industrial environments.
- IP67 protection provides resistance to dust and water ingress.
- Factory-fitted 2 m cable simplifies electrical installation.
Key Features
- Carlo Gavazzi IA series inductive proximity sensor.
- M18 cylindrical threaded stainless steel housing.
- 5 mm rated sensing distance.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated power supply.
- 9.35 mA maximum output current.
- 500 Hz maximum switching frequency.
- Flush-mountable sensing configuration.
- Short-body construction for compact machine installations.
- 2 m factory-fitted cable for electrical connection.
- LED indication for convenient operating-status monitoring.
- Reverse polarity protection for improved installation reliability.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA18ESF05UC detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters the sensing area, the sensor changes its electrical state without requiring physical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA18ESF05UC combines a 5 mm sensing distance with a NAMUR normally closed output for connection to compatible switching amplifiers and industrial control interfaces. Its stainless steel construction, flush-mountable M18 format, short-body design and factory-fitted cable make it particularly suitable for industrial machinery where reliable sensing and straightforward installation are required.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly and manufacturing equipment.
- Machine tools and production lines.
- NAMUR-compatible industrial sensing and control systems.
