Why Choose the Carlo Gavazzi IA18ESN08UCM1 Inductive Proximity Sensor?

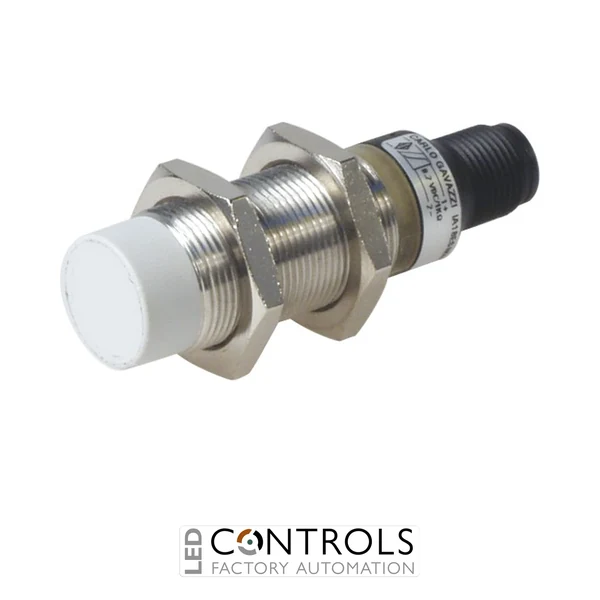

The Carlo Gavazzi IA18ESN08UCM1 is a robust M18 stainless steel NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Its short cylindrical body combines an extended 8 mm sensing distance, NAMUR normally closed output and convenient M12 plug connection.
Using inductive sensing technology, the IA18ESN08UCM1 detects conductive metallic objects without physical contact, helping to minimise mechanical wear while providing repeatable switching for position and presence monitoring. Its stainless steel housing and non-flush / unshielded sensing arrangement provide a durable solution where an extended detection range is required from an M18 sensor.
With a rated supply of 7–9 V DC, maximum output current of 9.35 mA and maximum switching frequency of 200 Hz, the IA18ESN08UCM1 is designed for compatible NAMUR interface circuits. Its M12 plug connection, IP67 protection and operating temperature range of -25 to +70 °C support dependable installation in demanding industrial environments.
Key Advantages
- Extended 8 mm rated sensing distance for reliable metallic-target detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Non-flush / unshielded configuration provides extended sensing capability.
- Durable stainless steel M18 housing for demanding machinery applications.
- M12 plug connection simplifies installation, replacement and maintenance.
- 200 Hz maximum switching frequency supports repetitive sensing applications.
- IP67 protection supports reliable operation in industrial environments.
Key Features
- Carlo Gavazzi IA18 series inductive proximity sensor.
- M18 cylindrical threaded barrel.
- Compact short-body construction.
- 8 mm rated operating distance.
- NAMUR normally closed output.
- 7–9 V DC rated power supply.
- 9.35 mA maximum output current.
- 200 Hz maximum switching frequency.
- Non-flush / unshielded mounting configuration.
- Stainless steel housing.
- M12 plug connection.
- LED status indication.
- Reverse-polarity protection.
- IP67 enclosure protection.
Extended-Range NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field at the sensing face and monitoring changes caused when conductive material enters that field. This contactless operating principle eliminates mechanical contact with the target, helping to reduce wear while providing repeatable position and presence detection in automated machinery.
The Carlo Gavazzi IA18ESN08UCM1 combines an extended 8 mm sensing distance with NAMUR normally closed signalling and a rugged stainless steel M18 housing. Its non-flush sensing arrangement, detachable M12 connection and IP67 enclosure protection make it a practical choice for machine builders and automation engineers using compatible NAMUR interface equipment.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Machine position and movement monitoring.
- Industrial systems using compatible NAMUR sensor interfaces.
