Why Choose the Carlo Gavazzi IA30CSF10UC Inductive Proximity Sensor?

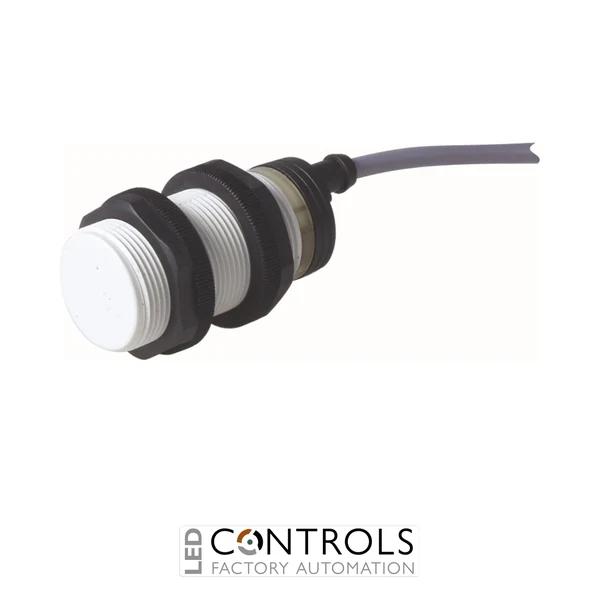

The Carlo Gavazzi IA30CSF10UC is a robust M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the proven Carlo Gavazzi IA series, it combines a thermoplastic polyester housing with NAMUR switching technology for dependable position, presence and limit detection.
This sensor uses inductive sensing technology to detect metallic targets without physical contact, helping reduce mechanical wear and improve reliability in repetitive industrial processes. Its flush-mountable, shielded short-body construction supports compact installation within surrounding metal, while its IP67 protection makes it suitable for demanding industrial environments.
With a nominal sensing distance of 10 mm, a NAMUR normally closed (NC) output and a 7–9 V DC rated operating voltage, the IA30CSF10UC is designed for integration with compatible NAMUR switching amplifiers and industrial control equipment. Its factory-fitted 2 m cable provides a straightforward electrical connection for machinery and automation installations.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 10 mm nominal sensing distance for industrial position and presence detection.
- NAMUR normally closed (NC) output for compatible industrial control and interface systems.
- Flush-mountable, shielded design supports compact installation within surrounding metal.
- Durable thermoplastic polyester housing for industrial applications.
- IP67 protection provides resistance to dust and water ingress.
- Factory-fitted 2 m cable simplifies electrical installation.
Key Features
- Carlo Gavazzi IA series inductive proximity sensor.
- M30 × 1.5 cylindrical threaded housing.
- 10 mm rated sensing distance.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated operating voltage.
- 9.35 mA maximum output current.
- 300 Hz operating frequency.
- Flush-mountable, shielded sensing configuration.
- Short-body construction for compact machine installations.
- 2 m factory-fitted cable for electrical connection.
- Yellow LED indication for operating status.
- Thermoplastic polyester housing for industrial environments.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA30CSF10UC detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters this field, the sensor changes its electrical state without requiring physical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA30CSF10UC combines a 10 mm sensing distance with a NAMUR normally closed output for connection to compatible switching amplifiers and industrial control interfaces. Its flush-mountable M30 format, short-body thermoplastic polyester construction, IP67 protection and factory-fitted cable make it particularly suitable for industrial machinery where reliable sensing and straightforward installation are required.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly and manufacturing equipment.
- Machine tools and production lines.
- NAMUR-compatible industrial sensing and control systems.
