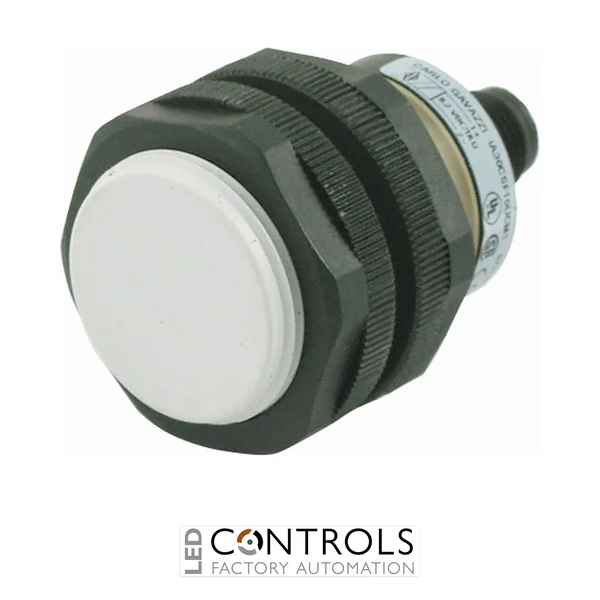

Why Choose the Carlo Gavazzi IA30CSF10UCM1 Inductive Proximity Sensor?
The Carlo Gavazzi IA30CSF10UCM1 is an M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Its compact short-body construction combines a 10 mm sensing distance, normally closed NAMUR output and convenient M12 plug connection.
Using inductive sensing technology, the IA30CSF10UCM1 detects conductive metallic objects without physical contact, helping to minimise mechanical wear while providing repeatable position and presence detection. Its thermoplastic polyester housing and flush / shielded sensing arrangement allow the sensor to be integrated into surrounding metalwork while maintaining its specified sensing performance.
With a rated operating voltage of 7–9 V DC, maximum output current of 9.35 mA and operating frequency of 300 Hz, the IA30CSF10UCM1 is designed for compatible NAMUR interface circuits. Its M12 connector, IP67 protection and operating temperature range of -25 to +70 °C support dependable industrial installation.
Key Advantages
- 10 mm nominal sensing distance for reliable metallic-target detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Flush / shielded mounting allows integration within surrounding metalwork.
- M12 plug connection simplifies installation, replacement and maintenance.
- Durable thermoplastic polyester housing provides electrical insulation and industrial durability.
- 300 Hz operating frequency supports repetitive position and presence detection.
- IP67 enclosure protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi IA30 series inductive proximity sensor.
- M30 × 1.5 cylindrical threaded housing.
- Compact short-body construction.
- 10 mm nominal sensing distance.
- NAMUR normally closed output.
- 7–9 V DC rated operating voltage.
- 9.35 mA maximum output current.
- 300 Hz operating frequency.
- Flush / shielded mounting configuration.
- Thermoplastic polyester housing.
- M12 plug connection.
- Yellow LED indication.
- IP67 enclosure protection.
- Operating temperature from -25 to +70 °C.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field at the sensing face and monitoring the change caused when conductive material enters that field. This contactless principle eliminates mechanical interaction with the target, helping to reduce wear while providing repeatable switching for position, presence and movement detection.
The Carlo Gavazzi IA30CSF10UCM1 combines a 10 mm sensing distance with NAMUR normally closed signalling in a compact M30 thermoplastic housing. Its flush mounting capability, detachable M12 connection and IP67 protection make it a practical sensing solution for industrial machinery and automation systems equipped with a compatible NAMUR interface.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Machine position and movement monitoring.
- Industrial systems using compatible NAMUR sensor interfaces.
