Why Choose the Carlo Gavazzi IA30CSN15UC Inductive Proximity Sensor?

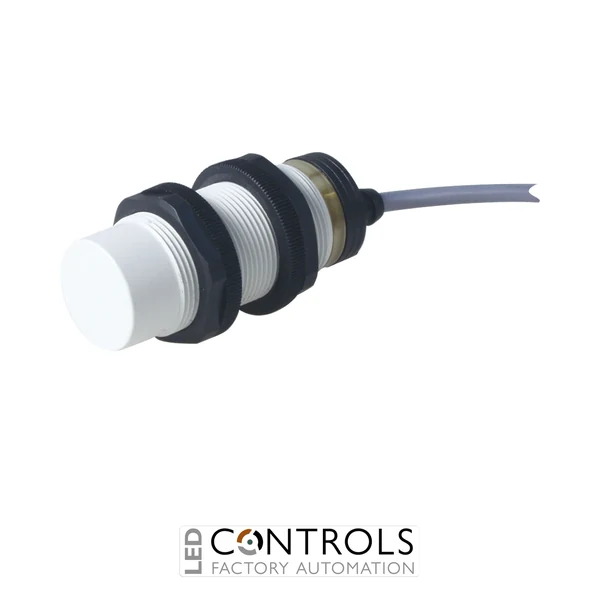

The Carlo Gavazzi IA30CSN15UC is an M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Its compact short-body construction combines an extended 15 mm sensing distance, normally closed NAMUR output and integral 2 m cable.
Using inductive sensing technology, the IA30CSN15UC detects conductive metallic objects without physical contact, helping to minimise mechanical wear while providing repeatable position and presence detection. Its thermoplastic polyester housing and non-flush / unshielded sensing arrangement provide an extended sensing range where additional clearance between the sensor and target is required.
With a rated operating voltage of 7–9 V DC, maximum output current of 9.35 mA and maximum switching frequency of 100 Hz, the IA30CSN15UC is designed for compatible NAMUR interface circuits. Its IP67 enclosure protection and operating temperature range of -25 to +70 °C support dependable use in demanding industrial environments.
Key Advantages
- Extended 15 mm nominal sensing distance for reliable metallic-target detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Non-flush / unshielded configuration provides extended sensing capability.
- Durable thermoplastic polyester housing for industrial sensing applications.
- 2 m integral cable provides straightforward hard-wired installation.
- 100 Hz maximum switching frequency supports repetitive position and presence detection.
- IP67 enclosure protection supports reliable operation in demanding industrial environments.
Key Features
- Carlo Gavazzi IA30 series inductive proximity sensor.
- M30 × 1.5 cylindrical threaded housing.
- Compact short-body construction.
- 15 mm nominal sensing distance.
- NAMUR normally closed output.
- 7–9 V DC rated power supply.
- 9.35 mA maximum output current.
- 100 Hz maximum switching frequency.
- Non-flush / unshielded mounting configuration.
- Thermoplastic polyester housing.
- 2 m integral cable.
- Yellow LED indication.
- IP67 enclosure protection.
- Operating temperature from -25 to +70 °C.
Extended-Range NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets by generating an electromagnetic field at the sensing face and monitoring the change caused when conductive material enters that field. This contactless sensing principle eliminates mechanical interaction with the target, helping to reduce wear while providing repeatable switching for position, presence and movement detection.
The Carlo Gavazzi IA30CSN15UC combines a 15 mm sensing distance with NAMUR normally closed signalling in a compact M30 thermoplastic housing. Its non-flush sensing arrangement, integral 2 m cable and IP67 protection make it a practical solution for industrial machinery and automation systems equipped with a compatible NAMUR interface.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Machine position and movement monitoring.
- Industrial systems using compatible NAMUR sensor interfaces.
