Why Choose the Carlo Gavazzi IA30ESF10UCM1 Inductive Proximity Sensor?

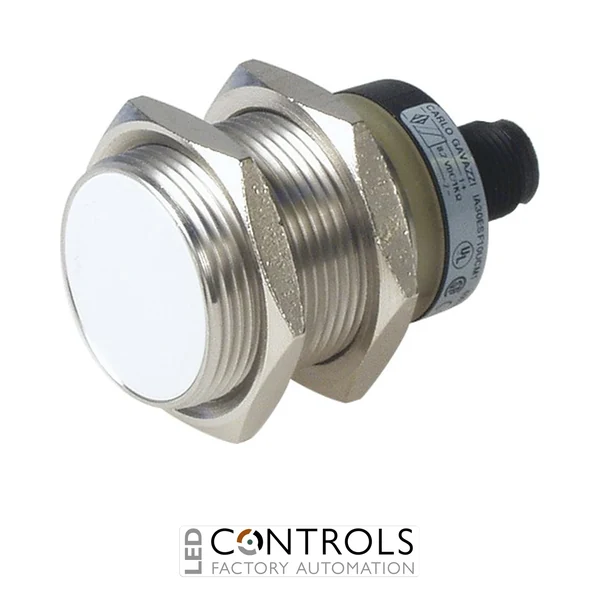

The Carlo Gavazzi IA30ESF10UCM1 is a robust M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. This short-body cylindrical sensor combines a durable stainless steel construction with a 10 mm rated operating distance for dependable position and presence detection.
The IA30ESF10UCM1 features a NAMUR normally closed (NC) output and is designed for flush / shielded mounting. Its M12 plug connection provides a convenient detachable electrical interface for installation and servicing, while the NAMUR output allows integration with compatible switching amplifiers and industrial control equipment.
Operating from a rated 7–9 V DC supply, the IA30ESF10UCM1 provides a maximum output current of 9.35 mA and a maximum switching frequency of 300 Hz. Its IP67 protection and operating temperature range of -25 °C to +70 °C support dependable operation across demanding industrial sensing applications.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical switching wear.
- 10 mm rated operating distance for industrial position and presence detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Flush / shielded M30 design supports integration into suitable machinery and metal structures.
- Compact short-body construction helps simplify installation where mounting space is restricted.
- M12 plug connection enables convenient installation, servicing and sensor replacement.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi IA30 NAMUR inductive proximity sensor.
- M30 cylindrical threaded metal housing.
- Stainless steel construction.
- Short-body design.
- 10 mm rated operating distance.
- Flush / shielded mounting.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated power supply.
- Maximum output current of 9.35 mA.
- Maximum switching frequency of 300 Hz.
- M12 plug-in connection.
- IP67 degree of protection.
- Yellow LED indication.
- Reverse-polarity protection.
- Operating temperature range of -25 °C to +70 °C.
Reliable NAMUR Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact, eliminating mechanical switching wear and supporting repeatable operation over high numbers of sensing cycles. The Carlo Gavazzi IA30ESF10UCM1 combines this contactless sensing principle with a NAMUR NC output for integration with compatible switching amplifiers and industrial control systems.
Its 10 mm sensing distance, flush-mountable M30 construction and compact short body make the IA30ESF10UCM1 suitable for presence, position and machine-sequence monitoring. The M12 connector simplifies installation and maintenance, while the robust housing and IP67 protection support reliable use in industrial machinery and automation environments.
Typical Applications
- Metal component presence and position detection.
- Industrial machinery and factory automation.
- Conveyors and material handling systems.
- Automated assembly and production machinery.
- Machine tools and positioning equipment.
- Packaging and processing machinery.
- Component counting and machine-sequence monitoring.
- NAMUR-compatible industrial sensing and control circuits.
