Why Choose the Carlo Gavazzi IA30ESN15UC Inductive Proximity Sensor?

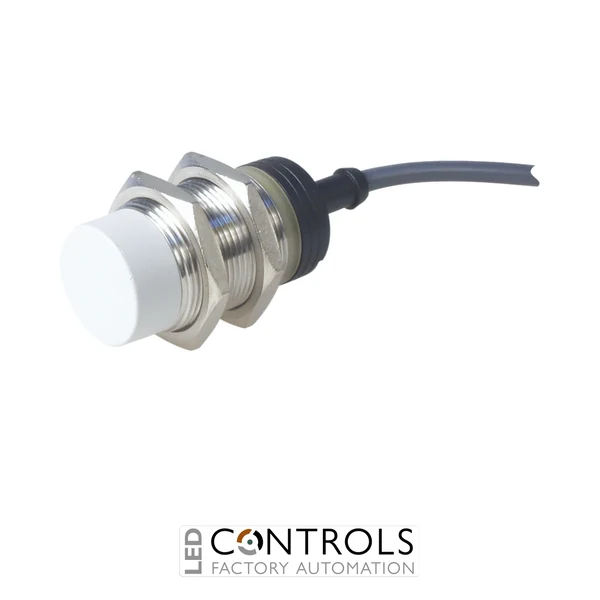

The Carlo Gavazzi IA30ESN15UC is a robust M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-control applications. This short-body sensor combines a durable stainless steel housing with an extended 15 mm rated operating distance for dependable position and presence detection.
The IA30ESN15UC features a NAMUR normally closed (NC) output and a non-flush sensing configuration. Its integral 2 m cable provides straightforward hard-wired connection to compatible NAMUR switching amplifiers and industrial control equipment, while the contactless inductive operating principle eliminates mechanical switching wear.
Operating from a rated 7–9 V DC supply, the IA30ESN15UC provides a maximum output current of 9.35 mA and a maximum switching frequency of 100 Hz. Its IP67 protection and operating temperature range of -25 °C to +70 °C make it suitable for demanding industrial sensing applications.
Key Advantages
- Extended 15 mm sensing distance for reliable non-contact metal detection.
- NAMUR normally closed (NC) output for compatible industrial interface equipment.
- Non-flush M30 sensing configuration provides increased detection range.
- Compact short-body construction helps simplify machinery installation.
- Durable stainless steel housing for demanding industrial environments.
- Integral 2 m cable enables straightforward hard-wired connection.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi IA30 NAMUR inductive proximity sensor.
- M30 cylindrical threaded stainless steel housing.
- Short-body construction.
- 15 mm rated operating distance.
- Non-flush mounting.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated power supply.
- Maximum output current of 9.35 mA.
- Maximum switching frequency of 100 Hz.
- Integral 2 m cable.
- IP67 degree of protection.
- Yellow LED indication.
- Reverse-polarity protection.
- Operating temperature range of -25 °C to +70 °C.
Reliable Extended-Range NAMUR Metal Detection
Inductive proximity sensors detect metallic objects without requiring physical contact, eliminating mechanical switching wear and supporting repeatable operation over high numbers of sensing cycles. The Carlo Gavazzi IA30ESN15UC combines this contactless sensing principle with a NAMUR NC output for integration with compatible switching amplifiers and industrial control systems.
Its 15 mm sensing distance and non-flush M30 construction provide an extended detection range, while the short stainless steel body offers a compact and durable installation. The integral 2 m cable, IP67 protection and wide industrial operating temperature range make the IA30ESN15UC a practical choice for automated machinery and production equipment.
Typical Applications
- Metal component presence and position detection.
- Industrial machinery and factory automation.
- Conveyors and material handling systems.
- Automated assembly and production machinery.
- Machine tools and positioning equipment.
- Packaging and processing machinery.
- Component counting and machine-sequence monitoring.
- NAMUR-compatible industrial sensing and control circuits.
