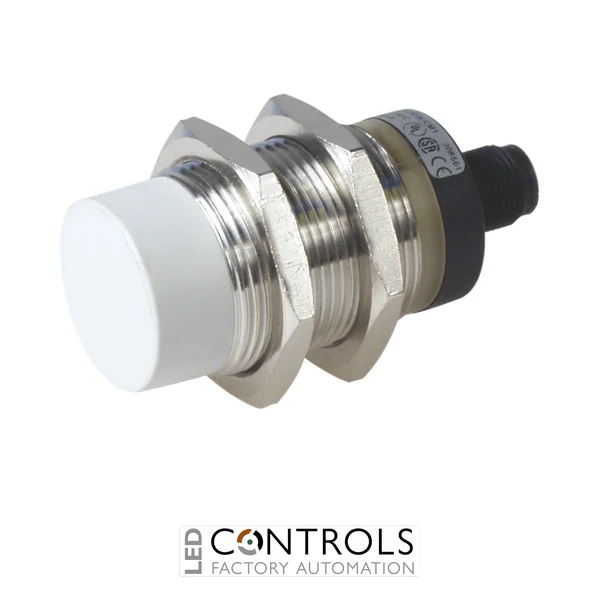

Why Choose the Carlo Gavazzi IA30ESN15UCM1 Inductive Proximity Sensor?
The Carlo Gavazzi IA30ESN15UCM1 is a robust M30 NAMUR inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the proven Carlo Gavazzi IA series, it combines a stainless steel cylindrical housing with NAMUR switching technology for dependable position, presence and limit detection.
This sensor uses inductive sensing technology to detect metallic targets without physical contact, helping reduce mechanical wear and improve reliability in repetitive industrial processes. Its non-flush, unshielded short-body construction provides an extended sensing range, while the stainless steel housing and IP67 protection support dependable operation in demanding industrial environments.
With a nominal sensing distance of 15 mm, a NAMUR normally closed (NC) output and a 7–9 V DC rated operating voltage, the IA30ESN15UCM1 is designed for integration with compatible NAMUR switching amplifiers and industrial control equipment. Its M12 plug connection supports convenient installation, maintenance and sensor replacement.
Key Advantages
- Reliable non-contact inductive detection of metallic targets.
- 15 mm nominal sensing distance provides extended-range detection in an M30 housing.
- NAMUR normally closed (NC) output for compatible industrial control and interface systems.
- Non-flush, unshielded design supports increased sensing distance.
- Durable stainless steel housing for demanding industrial environments.
- IP67 protection provides resistance to dust and water ingress.
- M12 plug connection simplifies installation, servicing and sensor replacement.
Key Features
- Carlo Gavazzi IA series inductive proximity sensor.
- M30 × 1.5 cylindrical threaded housing.
- 15 mm rated sensing distance.
- NAMUR normally closed (NC) output.
- 7–9 V DC rated operating voltage.
- 9.35 mA maximum output current.
- 100 Hz maximum switching frequency.
- Non-flush, unshielded sensing configuration.
- Short-body construction for compact machine installations.
- M12 plug connection for convenient electrical installation.
- Yellow LED indication for operating status.
- Reverse polarity protection for improved installation reliability.
Reliable NAMUR Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IA30ESN15UCM1 detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters this field, the sensor changes its electrical state without requiring physical contact, providing a durable solution for repetitive position, presence and limit detection.
The IA30ESN15UCM1 combines an extended 15 mm sensing distance with a NAMUR normally closed output for connection to compatible switching amplifiers and industrial control interfaces. Its stainless steel M30 housing, non-flush sensing arrangement, IP67 protection and M12 plug make it particularly suitable for industrial machinery where extended sensing range, robust construction and convenient maintenance are required.
Typical Applications
- Industrial machine position and presence detection.
- Conveyors and material handling systems.
- Packaging and production machinery.
- Metal component detection and counting.
- Automated assembly and manufacturing equipment.
- Machine tools and production lines.
- NAMUR-compatible industrial sensing and control systems.
