Why Choose the Carlo Gavazzi IBS04SF15M5NC Inductive Proximity Sensor?

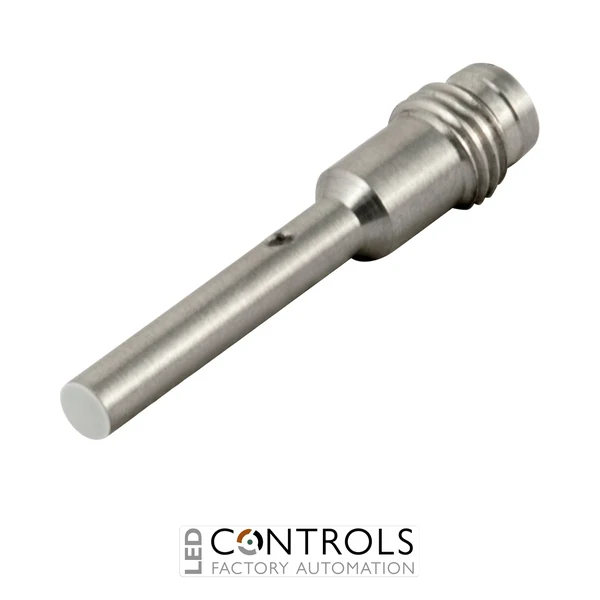

The Carlo Gavazzi IBS04SF15M5NC is a miniature Ø4 mm inductive proximity sensor designed for reliable non-contact detection of metallic objects where installation space is limited. Part of the Carlo Gavazzi IBS04 range, it combines a compact short-body stainless steel housing with an NPN normally closed (NC) output for industrial automation and machine sensing applications.
This sensor uses inductive sensing technology to detect metallic targets without physical contact, helping minimise mechanical wear while supporting high-speed repetitive operation. Its flush-mount, shielded construction allows the sensing face to be installed within surrounding metal, making it particularly useful for compact machinery, robotic equipment and precision automation assemblies.
With a rated sensing distance of 1.5 mm, a 10–30 V DC supply, maximum output current of 100 mA and maximum switching frequency of 4.5 kHz, the IBS04SF15M5NC provides fast and dependable metal detection. An M8 connector simplifies installation and replacement, while IP67 protection supports use in demanding industrial environments.
Key Advantages
- Miniature Ø4 mm sensor body for space-constrained machinery and automation equipment.
- 1.5 mm rated sensing distance for precise non-contact metal detection.
- NPN normally closed (NC) output for integration with compatible PLC and control inputs.
- 4.5 kHz maximum switching frequency supports high-speed detection applications.
- Flush-mount, shielded construction allows compact installation within surrounding metal.
- Robust stainless steel housing for industrial applications.
- M8 connector enables convenient installation, servicing and sensor replacement.
- IP67 protection provides resistance to dust and water ingress.
Key Features
- Carlo Gavazzi IBS04 miniature inductive proximity sensor.
- Ø4 mm cylindrical smooth-barrel housing.
- Short-body construction for installations with restricted space.
- 1.5 mm rated operating distance.
- 3-wire NPN normally closed (NC) output.
- 10–30 V DC rated power supply.
- 100 mA maximum output current.
- 4.5 kHz maximum switching frequency.
- Flush-mount, shielded sensing configuration.
- M8 connector for straightforward electrical connection.
- Stainless steel construction for robust industrial use.
- IP67-rated enclosure for demanding environments.
Compact High-Speed Sensing for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi IBS04SF15M5NC detect metallic objects by generating an electromagnetic field at the sensing face. When a suitable metal target enters this field, the sensor changes its electrical output state without requiring physical contact, providing reliable position and presence detection while reducing mechanical wear.
The IBS04SF15M5NC combines a miniature Ø4 mm housing with a 1.5 mm sensing distance and maximum switching frequency of 4.5 kHz. Its compact dimensions, flush-mount construction and M8 connector make it particularly suitable for precision machinery, robotic position sensing, small mechanisms and other automation applications where both installation space and response speed are important.
Typical Applications
- Compact industrial machine position detection.
- Robotic position and end-of-travel sensing.
- Tool presence and tool-selection systems.
- High-speed metal component detection.
- Small mechanisms and precision automation equipment.
- Packaging and assembly machinery.
- Automated production equipment with restricted sensor mounting space.
