Why Choose the Carlo Gavazzi ICB12L50N04PO Inductive Proximity Sensor?

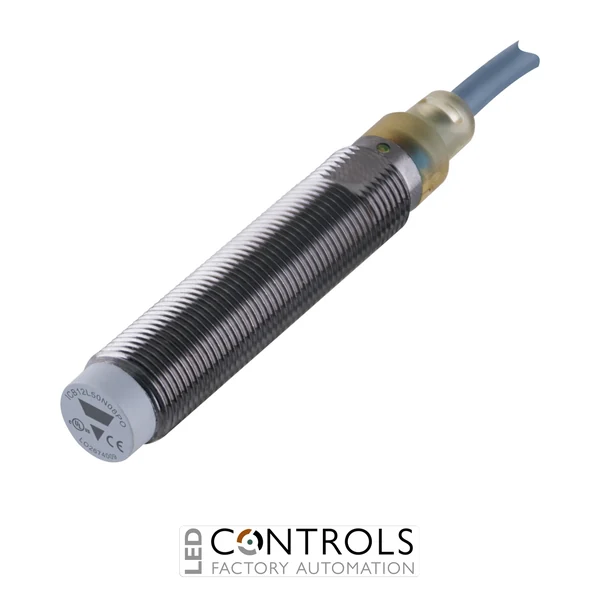

The Carlo Gavazzi ICB12L50N04PO is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB12 series, this long-body sensor combines a durable nickel-plated brass threaded housing with dependable solid-state switching for position, presence and movement detection.
The ICB12L50N04PO provides a rated operating distance of 4 mm with a non-flush mounting configuration and PNP normally open (NO) output. Its maximum switching frequency of 2 kHz supports responsive detection of moving metallic targets in automated production, conveying and machine-control applications.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and is supplied with an integral 2 m cable. Its long M12 body, nickel-plated brass construction, IP67 protection and operating temperature range of -25 to +70 °C make it well suited to demanding industrial environments.
Key Advantages
- 4 mm rated operating distance for reliable non-contact metallic target detection.
- PNP normally open (NO) output for integration with common industrial control systems.
- Non-flush mounting configuration for dependable sensing performance.
- 10–36 V DC operating range suits standard industrial DC control supplies.
- Maximum output current of 200 mA for industrial switching applications.
- Maximum switching frequency of 2 kHz supports rapid target detection.
- Integral 2 m cable provides straightforward electrical connection.
- Durable nickel-plated brass M12 housing for industrial installations.
- IP67 protection supports dependable operation in dusty and wet environments.
Key Features
- Carlo Gavazzi ICB12 series inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Long-body design.
- 4 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO) switching output.
- 10–36 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- 2 m integral cable connection.
- Nickel-plated brass sensor body.
- Integrated LED indication.
- IP67 degree of protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact between the target and sensing face. This contactless operating principle helps minimise mechanical wear while providing repeatable position and presence detection in automated machinery, production lines and material handling equipment.
The ICB12L50N04PO combines an M12 long-body format with a 4 mm sensing distance, PNP normally open output and fast 2 kHz switching capability. Its integral 2 m cable and rugged IP67 nickel-plated brass housing provide a practical solution for machine builders and automation engineers requiring reliable metal detection.
Typical Applications
- Industrial conveyor and material handling systems.
- Metal component presence and position detection.
- Automated assembly and production machinery.
- Machine position and end-of-travel monitoring.
- Packaging and processing equipment.
- Metallic workpiece counting and detection.
- Factory automation and PLC-controlled machinery.
- OEM machine-building applications.
