Why Choose the Carlo Gavazzi ICB12L50N10POM1 Inductive Proximity Sensor?

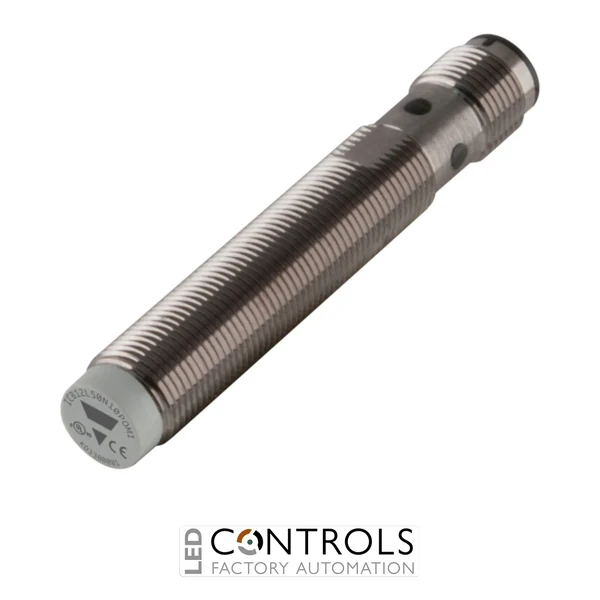

The Carlo Gavazzi ICB12L50N10POM1 is a robust M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB12 series, this long-body sensor combines an increased sensing range with a durable nickel-plated brass housing for dependable operation in demanding industrial environments.
The ICB12L50N10POM1 provides a rated operating distance of 10 mm and is designed for non-flush mounting. Its PNP normally open (NO) output enables straightforward integration with compatible PLC inputs, machine controllers and automation systems for position monitoring, component detection, counting and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 2 kHz. The M12 connector provides convenient installation and replacement, while the IP67 protection rating supports reliable operation in industrial environments exposed to dust and moisture.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical switching wear.
- Increased 10 mm rated sensing distance in an M12 sensor format.
- PNP normally open output for integration with compatible industrial control systems.
- Non-flush mounting supports the sensor's extended operating distance.
- Wide 10–36 V DC supply range for industrial automation applications.
- Fast 2 kHz maximum switching frequency for responsive detection.
- Rugged nickel-plated brass threaded housing for industrial durability.
- M12 plug connection simplifies installation, maintenance and sensor replacement.
- IP67 protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB12 series inductive proximity sensor.
- M12 cylindrical threaded long-body design.
- 10 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO) switching output.
- 10–36 V DC supply voltage.
- 200 mA maximum output current.
- 2 kHz maximum switching frequency.
- M12 connector electrical connection.
- 4-pin connector configuration.
- Nickel-plated brass housing.
- LED output indication.
- Reverse-polarity, short-circuit and transient protection.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable metal object enters the detection zone, providing repeatable solid-state switching without the mechanical wear associated with conventional contact-based position switches.
The Carlo Gavazzi ICB12L50N10POM1 combines an increased 10 mm sensing distance with fast 2 kHz switching, rugged metal construction and a convenient M12 plug connection. These characteristics make it well suited to repetitive position sensing and object detection in automated machinery, conveyors, assembly equipment and manufacturing systems.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- Machine sequencing and end-position monitoring.
- PLC-controlled factory automation systems.
