Why Choose the Carlo Gavazzi ICB12S23N08A2NC Inductive Proximity Sensor?

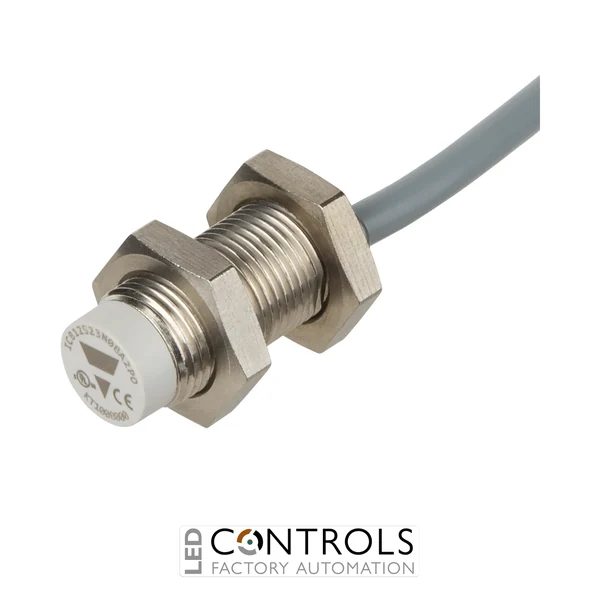

The Carlo Gavazzi ICB12S23N08A2NC is an extra-short-body M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets where installation space is limited. Part of the Carlo Gavazzi ICB12 series, it combines an extended sensing range with a durable nickel-plated brass threaded housing for industrial automation and machine-building applications.
The ICB12S23N08A2NC provides a rated operating distance of 8 mm with a non-flush mounting configuration and an NPN normally closed (NC) output. Despite its compact body, the sensor supports switching frequencies up to 2 kHz, making it suitable for responsive detection of moving metallic components.
Operating from a 10–36 V DC supply, the sensor supports output currents up to 200 mA and is supplied with an integral 2 m cable. Its IP67 protection, yellow LED indication and built-in short-circuit, reverse-polarity and transient protection provide a robust sensing solution for demanding industrial installations.
Key Advantages
- 8 mm extended sensing distance provides substantial detection range from a compact M12 sensor.
- Extra-short body is ideal where available mounting depth is restricted.
- NPN normally closed (NC) output supports compatible industrial DC control circuits.
- Non-flush mounting enables the extended sensing range.
- 10–36 V DC operating range suits standard industrial control supplies.
- Output current up to 200 mA for industrial switching applications.
- Switching frequency up to 2 kHz supports rapid target detection.
- Integral 2 m cable provides straightforward electrical connection.
- IP67 nickel-plated brass construction provides durable environmental protection.
Key Features
- Carlo Gavazzi ICB12 series inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Extra-short body measuring only 29 mm in overall length.
- 8 mm extended rated operating distance.
- Non-flush mounting configuration.
- NPN normally closed (NC) three-wire DC output.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- 2 m integral cable connection.
- Nickel-plated brass threaded housing.
- Yellow LED output indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 degree of protection.
- Operating temperature range from -25 to +80 °C.
Extended-Range Detection in a Compact M12 Sensor
Inductive proximity sensors detect metallic targets without physical contact, providing repeatable switching while avoiding the mechanical wear associated with contact-based sensing devices. The principle is well suited to automated machinery requiring reliable component presence, position, movement or end-of-travel detection.
The ICB12S23N08A2NC is particularly useful where both compact installation dimensions and an extended 8 mm sensing range are required. Its extra-short 29 mm body, NPN normally closed output, 2 kHz switching capability and rugged IP67 construction provide a flexible sensing solution for modern industrial equipment.
Typical Applications
- Compact industrial machinery with restricted sensor mounting depth.
- Conveyor and material handling equipment.
- Metal component presence and position detection.
- Automated assembly and production machinery.
- Machine position and end-of-travel monitoring.
- Packaging and processing equipment.
- Metallic workpiece counting and detection.
- OEM machinery requiring compact, extended-range sensing.
