Why Choose the Carlo Gavazzi ICB12S23N08M1PO Inductive Proximity Sensor?

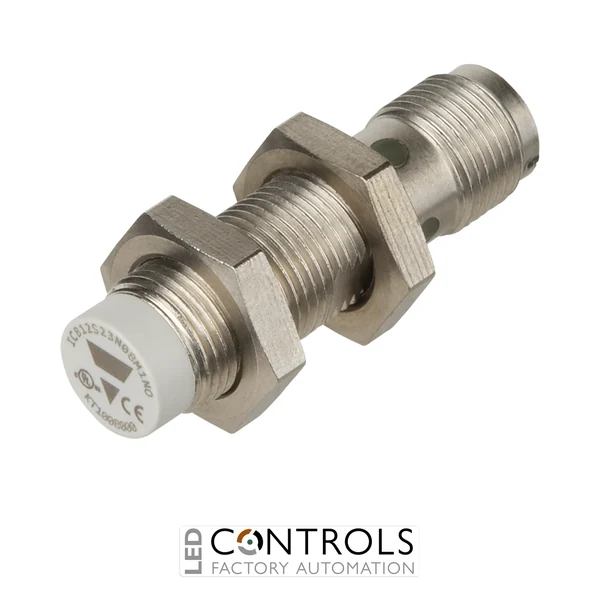

The Carlo Gavazzi ICB12S23N08M1PO is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB12S23 series, it combines an extended sensing range with an extra-short cylindrical body, making it particularly suitable for applications where installation space is limited.
This sensor provides a 3-wire PNP normally open (NO) output and a rated operating distance of 8 mm. Its non-flush mounting configuration enables the extended sensing range, while the M12 connector provides a convenient detachable electrical connection for installation, servicing and sensor replacement.
With a rated operating voltage of 10–36 V DC, maximum output current of 200 mA and maximum switching frequency of 2 kHz, the ICB12S23N08M1PO supports fast and repetitive industrial detection tasks. Its nickel-plated brass housing, IP67 protection rating and operating temperature range of -25 to +80 °C provide dependable performance in demanding industrial environments.
Key Advantages
- Extra-short M12 body is ideal for machinery where available installation space is restricted.
- 8 mm extended rated sensing distance provides increased target clearance from a compact sensor.
- PNP normally open output supports compatible PLC and industrial control inputs.
- Non-flush mounting configuration enables extended sensing performance.
- 10–36 V DC operating range suits common industrial automation power systems.
- M12 connector enables quick installation, servicing and sensor replacement.
- Nickel-plated brass housing with IP67 protection provides robust industrial durability.
Key Features
- Carlo Gavazzi ICB12S23 inductive proximity sensor.
- 8 mm rated operating distance.
- PNP normally open (NO) switching output.
- 3-wire DC configuration.
- 10–36 V DC rated operating voltage.
- Maximum 200 mA output current.
- Maximum 2 kHz switching frequency.
- Non-flush mounting configuration.
- M12 × 1 cylindrical threaded extra-short body.
- Nickel-plated brass housing for industrial durability.
- M12 connector for detachable electrical connection.
- Yellow LED output indication.
- Short-circuit, reverse-polarity and transient protection.
- IP67 protection rating.
Reliable Inductive Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB12S23N08M1PO detect metallic targets without physical contact by generating an electromagnetic field at the sensing face. When a suitable metal object enters the sensing range, the sensor changes its output state, enabling reliable position, presence and movement detection without the mechanical wear associated with conventional contact switches.
The ICB12S23 extra-short series is designed for industrial automation applications where available installation space is limited but extended sensing performance is required. The ICB12S23N08M1PO combines an 8 mm sensing distance, non-flush mounting, compact 44 mm overall length and detachable M12 connection, making it well suited to densely packaged machinery, automated production equipment and material handling systems.
Typical Applications
- Compact industrial machinery with restricted sensor mounting space.
- Machine position and presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Metal component detection and counting.
- PLC-controlled industrial automation systems.
