Why Choose the Carlo Gavazzi ICB12S30F04A2IO IO-Link Inductive Proximity Sensor?

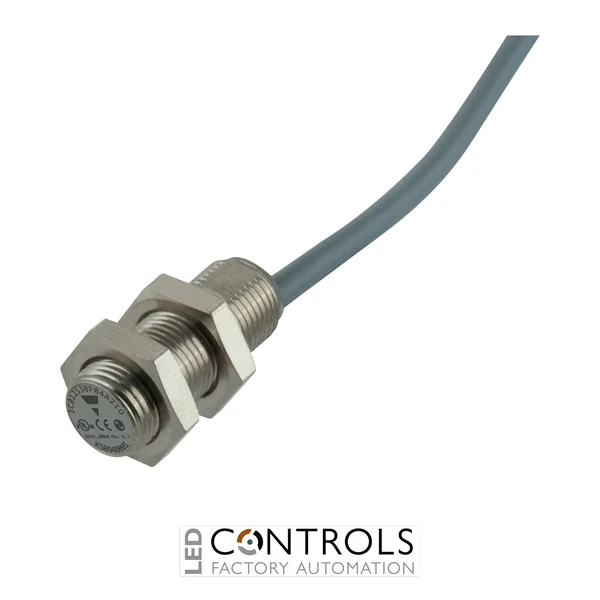

The Carlo Gavazzi ICB12S30F04A2IO is a short-body M12 IO-Link inductive proximity sensor designed for intelligent non-contact detection of metallic targets in industrial automation systems. Its nickel-plated brass threaded housing, integral 2 m cable and compact dimensions make it particularly suitable for machinery where installation space and reliable metal detection are important.
The ICB12S30F04A2IO provides a maximum rated operating distance of 4 mm with flush mounting. Through IO-Link, the sensing distance can be configured to approximately 1.3, 2, 3 or 4 mm, while the switching output is configurable as PNP, NPN or push-pull and as normally open or normally closed, providing considerably more flexibility than a conventional fixed-output proximity sensor.
Operating from a 10–36 V DC supply, the sensor supports output current up to 200 mA and a switching frequency up to 2 kHz. IO-Link V1.1 communication enables parameterisation and diagnostic functions, while IP67 protection and an operating temperature range of -25 to +70 °C support dependable use in demanding industrial environments.
Key Advantages
- IO-Link V1.1 connectivity enables intelligent sensor configuration and communication.
- Adjustable sensing distance with selectable settings of approximately 1.3, 2, 3 or 4 mm.
- Configurable PNP, NPN or push-pull output provides flexible control-system integration.
- Configurable NO or NC switching function reduces the need for multiple fixed-output sensor variants.
- Flush-mountable M12 design supports compact machine integration.
- Short 32 mm body is suitable for installations with restricted mounting depth.
- Switching frequency up to 2 kHz supports high-speed detection applications.
- Integral 2 m oil-resistant PVC cable provides straightforward electrical connection.
- IP67 nickel-plated brass construction provides robust protection for industrial use.
Key Features
- Carlo Gavazzi ICB12 series IO-Link inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Short-body design.
- 4 mm maximum rated operating distance.
- Selectable sensing distances of approximately 1.3 / 2 / 3 / 4 mm.
- Flush-mountable sensing configuration.
- Configurable PNP / NPN / push-pull switching output.
- Configurable normally open / normally closed switching function.
- IO-Link V1.1 communication or standard switching I/O operation.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- 2 m oil-resistant PVC cable.
- Nickel-plated brass housing.
- IP67 degree of protection.
Intelligent IO-Link Metal Detection for Industrial Automation
The ICB12S30F04A2IO combines conventional inductive metal detection with IO-Link V1.1 communication, allowing sensor parameters to be configured electronically rather than being fixed solely by the hardware variant. The switching output can be configured as PNP, NPN or push-pull and as normally open or normally closed, while sensing distance can be adjusted to suit the application.
With its compact 32 mm M12 body, flush installation, 2 kHz switching capability and 2 m cable, the ICB12S30F04A2IO is suitable for intelligent position and presence detection in connected industrial machinery. IO-Link functionality can also support configurable timer, hysteresis and temperature-monitoring functions, helping machine builders implement flexible sensor installations and obtain useful diagnostic information.
Typical Applications
- IO-Link-enabled industrial automation systems.
- Metal component presence and position detection.
- Compact machinery with restricted sensor mounting depth.
- High-speed conveyor and material handling equipment.
- Automated assembly and production machinery.
- Rotational speed and moving-target monitoring.
- Packaging and processing machinery.
- Smart factory and Industry 4.0 sensor applications.
