Why Choose the Carlo Gavazzi ICB12S30F04M1IO IO-Link Inductive Proximity Sensor?

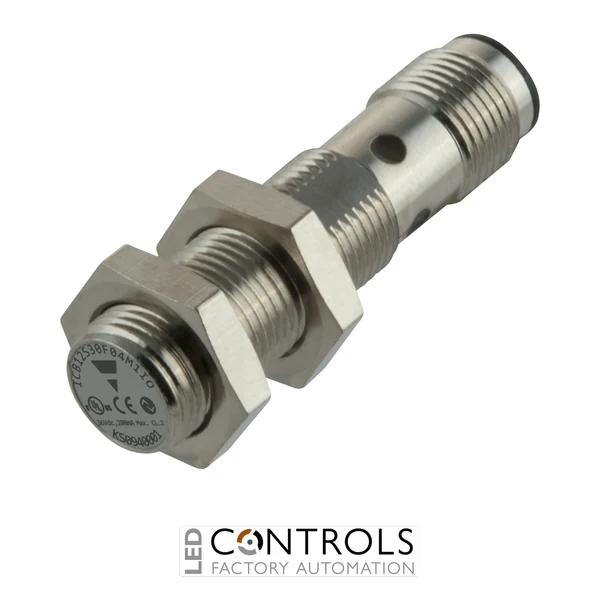

The Carlo Gavazzi ICB12S30F04M1IO is a short-body M12 IO-Link inductive proximity sensor designed for intelligent non-contact detection of metallic targets in industrial automation systems. Its nickel-plated brass threaded housing and compact construction provide a robust sensing solution for machinery where installation space and reliable metal detection are important.
The ICB12S30F04M1IO provides a maximum rated operating distance of 4 mm with flush mounting. Through its configurable functionality, the sensing distance can be set to 33%, 50%, 75% or 100% of the maximum 4 mm range, while the switching output can be configured as PNP, NPN or push-pull with normally open or normally closed operation.
Operating from a 10–36 V DC supply, the sensor supports an output current of up to 200 mA and a switching frequency of up to 2 kHz. An M12 4-pin connector enables convenient installation and replacement, while IO-Link communication, IP67 protection and an operating temperature range of -40 to +70 °C support advanced use in modern industrial machinery.
Key Advantages
- IO-Link connectivity enables intelligent sensor configuration and communication.
- Adjustable sensing distance can be set to 33%, 50%, 75% or 100% of the maximum 4 mm range.
- Configurable PNP, NPN or push-pull output provides flexible control-system integration.
- Configurable NO or NC switching function reduces the need for multiple fixed-output sensor variants.
- Flush-mountable M12 design supports compact integration into machinery.
- Short-body construction is suitable for installations with restricted mounting depth.
- Switching frequency up to 2 kHz supports rapid target detection.
- M12 4-pin connector simplifies installation, maintenance and sensor replacement.
- IP67 nickel-plated brass construction provides robust protection for industrial environments.
Key Features
- Carlo Gavazzi ICB series IO-Link inductive proximity sensor.
- M12 cylindrical threaded barrel.
- Short-body design.
- 4 mm maximum rated operating distance.
- Selectable sensing distance at 33%, 50%, 75% or 100% of maximum range.
- Flush-mountable sensing configuration.
- Configurable PNP / NPN / push-pull switching output.
- Configurable normally open / normally closed switching function.
- IO-Link intelligent sensor communication.
- 10–36 V DC rated operating voltage.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- M12 4-pin connector.
- Nickel-plated brass threaded housing.
- IP67 degree of protection.
Intelligent IO-Link Metal Detection for Industrial Automation
The ICB12S30F04M1IO combines conventional inductive metal detection with intelligent IO-Link functionality, allowing key sensor parameters to be configured electronically rather than relying on a fixed hardware configuration. The switching output can be configured as PNP, NPN or push-pull and as normally open or normally closed, while the sensing distance can be adjusted to 33%, 50%, 75% or 100% of its maximum 4 mm range.
With its compact M12 short-body construction, flush installation, 2 kHz switching capability and detachable M12 connector, the ICB12S30F04M1IO is suitable for intelligent position and presence detection in connected industrial machinery. Its configurable architecture can help machine builders standardise sensor installations while providing the communication capabilities required by modern automation systems.
Typical Applications
- IO-Link-enabled industrial automation systems.
- Metal component presence and position detection.
- Compact machinery with restricted sensor mounting depth.
- High-speed conveyor and material handling equipment.
- Automated assembly and production machinery.
- Machine position and moving-target monitoring.
- Packaging and processing machinery.
- Smart factory and Industry 4.0 sensing applications.
