Why Choose the Carlo Gavazzi ICB12S30F04PCM1 Inductive Proximity Sensor?

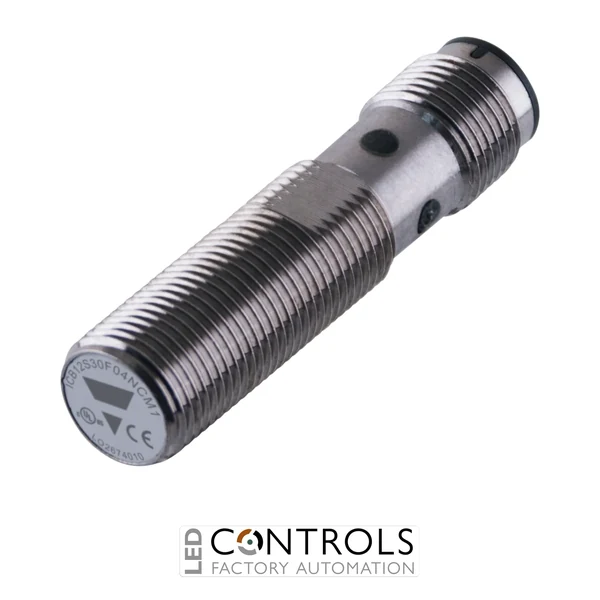

The Carlo Gavazzi ICB12S30F04PCM1 is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB series, this short-body sensor combines a cylindrical threaded design with a durable nickel-plated brass housing for dependable industrial sensing.
The ICB12S30F04PCM1 provides a rated operating distance of 4 mm and is designed for flush mounting. Its PNP normally closed (NC) output enables straightforward integration with compatible PLC inputs, machine controllers and automation systems for position monitoring, metal component detection and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 2 kHz. An M12 plug connection, compact short-body construction, LED indication and IP67 protection make it well suited to demanding industrial automation installations.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical sensing wear.
- 4 mm rated sensing distance for accurate industrial position and presence detection.
- Flush-mountable design supports compact installation within suitable machine structures.
- PNP normally closed output for compatible industrial PLC and control systems.
- Wide 10–36 V DC operating range for industrial automation applications.
- 200 mA maximum output current for dependable solid-state switching.
- Fast 2 kHz maximum switching frequency for responsive machine sensing.
- Rugged nickel-plated brass housing for industrial durability.
- M12 plug connection simplifies installation, servicing and sensor replacement.
- IP67 ingress protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded short-body construction.
- 4 mm rated operating distance.
- Flush mounting.
- PNP normally closed (NC) output.
- 10–36 V DC rated power supply.
- 200 mA maximum output current.
- 2 kHz maximum switching frequency.
- M12 connector electrical connection.
- 4-pin connector configuration.
- Nickel-plated brass housing.
- Approximately 50 mm overall length.
- LED output status indication.
- Reverse-polarity, short-circuit and transient protection.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable conductive target enters the sensing zone, allowing the solid-state output to change state and provide repeatable position or presence information without the mechanical wear associated with conventional contact switches.
The Carlo Gavazzi ICB12S30F04PCM1 combines a compact M12 short body with a 4 mm sensing distance, flush installation and fast PNP switching. Its detachable M12 connector and rugged metal construction make it a practical sensing solution for automated machinery requiring compact installation, straightforward maintenance and reliable repetitive detection.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Machine end-position monitoring.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- PLC-controlled factory automation systems.
