Why Choose the Carlo Gavazzi ICB12S30F06NO Inductive Proximity Sensor?

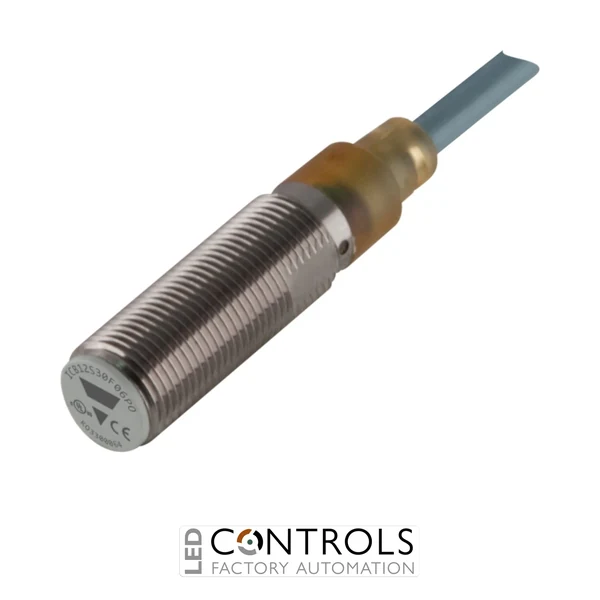

The Carlo Gavazzi ICB12S30F06NO is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. Part of the Carlo Gavazzi ICB12 series, it combines an increased sensing range with a short cylindrical body, making it well suited to installations where compact dimensions and dependable metal detection are required.
This sensor provides an NPN normally open (NO) output and a rated operating distance of 6 mm. Its quasi-flush mounting configuration provides increased sensing range while retaining a compact M12 format, and the integrated 2 m cable enables straightforward connection to PLCs, machine controllers and industrial automation equipment.
With a rated operating voltage of 10–36 V DC, maximum output current of 200 mA and maximum switching frequency of 2 kHz, the ICB12S30F06NO supports fast and repetitive industrial detection tasks. Its nickel-plated brass housing, IP67 protection rating and operating temperature range of -25 to +70 °C provide dependable performance in demanding industrial environments.
Key Advantages
- Short M12 body provides a compact solution for space-conscious machinery installations.
- 6 mm increased rated sensing distance provides greater target clearance than standard-range M12 sensors.
- NPN normally open output supports compatible PLC and industrial control inputs.
- Quasi-flush mounting combines compact installation with increased sensing performance.
- 10–36 V DC operating range suits common industrial automation power systems.
- Integrated 2 m cable provides convenient direct wiring to control equipment.
- Nickel-plated brass housing with IP67 protection provides robust industrial durability.
Key Features
- Carlo Gavazzi ICB12 inductive proximity sensor.
- 6 mm rated operating distance.
- NPN normally open (NO) switching output.
- 10–36 V DC rated operating voltage.
- Maximum 200 mA output current.
- Maximum 2 kHz switching frequency.
- Quasi-flush mounting configuration.
- M12 × 1 cylindrical threaded short-body design.
- Nickel-plated brass housing for industrial durability.
- 2 m cable connection for direct wiring.
- LED status indication.
- IP67 protection rating.
Reliable Inductive Detection for Industrial Automation
Inductive proximity sensors such as the Carlo Gavazzi ICB12S30F06NO detect metallic targets without physical contact by generating an electromagnetic field at the sensing face. When a suitable metal object enters the sensing range, the sensor changes its output state, enabling reliable position, presence and movement detection without the mechanical wear associated with conventional contact switches.
The ICB12 increased-range series is designed for industrial automation applications requiring compact dimensions together with greater sensing clearance. The ICB12S30F06NO combines a 6 mm sensing distance, quasi-flush installation, short M12 body and integrated 2 m cable, making it well suited to PLC-controlled machinery, automated production equipment and material handling systems.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Automated assembly equipment.
- Metal component detection and counting.
- Machine tool and manufacturing equipment.
- PLC-controlled industrial automation systems.
