Why Choose the Carlo Gavazzi ICB12S30F06PC Inductive Proximity Sensor?

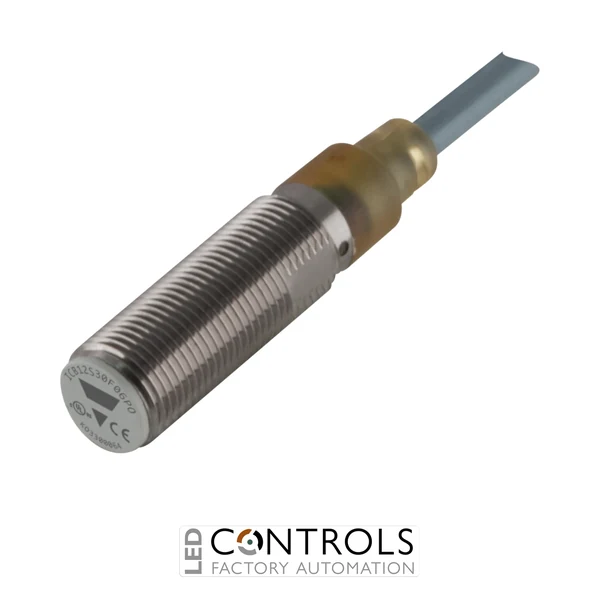

The Carlo Gavazzi ICB12S30F06PC is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB series, this increased-range sensor combines a short cylindrical threaded body with durable nickel-plated brass construction for dependable industrial sensing.
The ICB12S30F06PC provides a rated operating distance of 6 mm and uses a quasi-flush mounting configuration. Its PNP normally closed (NC), 3-wire DC output makes it suitable for compatible PLC inputs, machine controllers and automation systems used for position monitoring, metal component detection and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 2 kHz. It is supplied with an integral 2 m cable and features an M12 × 48 mm short body, nickel-plated brass housing and IP67 protection for reliable operation in industrial environments.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical sensing wear.
- Increased 6 mm rated sensing distance in a compact M12 format.
- Quasi-flush mounting combines increased sensing range with flexible machine integration.
- PNP normally closed output for compatible industrial PLC and control systems.
- Wide 10–36 V DC operating range for industrial automation applications.
- Fast 2 kHz maximum switching frequency for responsive machine sensing.
- Compact M12 short-body construction for installations with limited space.
- Rugged nickel-plated brass housing for industrial durability.
- Integral 2 m cable provides a straightforward wired connection.
- IP67 ingress protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded short-body design.
- 6 mm rated operating distance.
- Quasi-flush mounting configuration.
- PNP normally closed (NC), 3-wire DC output.
- 10–36 V DC rated operating voltage.
- 200 mA maximum output current.
- 2 kHz maximum switching frequency.
- 2 m integral cable.
- Nickel-plated brass housing.
- M12 × 48 mm overall dimensions.
- M12 × 1 × 30 mm threaded section.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Increased-Range Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable conductive target enters the sensing zone, allowing the solid-state output to change state and provide repeatable position or presence information without the mechanical wear associated with conventional contact switches.
The Carlo Gavazzi ICB12S30F06PC combines a compact M12 short body with an increased 6 mm sensing distance, quasi-flush installation and fast PNP switching. This combination makes it a practical solution for automated machinery where greater sensing range is required without moving to a larger sensor housing.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Machine end-position monitoring.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- PLC-controlled factory automation systems.
