Why Choose the Carlo Gavazzi ICB12S30N08A2IO IO-Link Inductive Proximity Sensor?

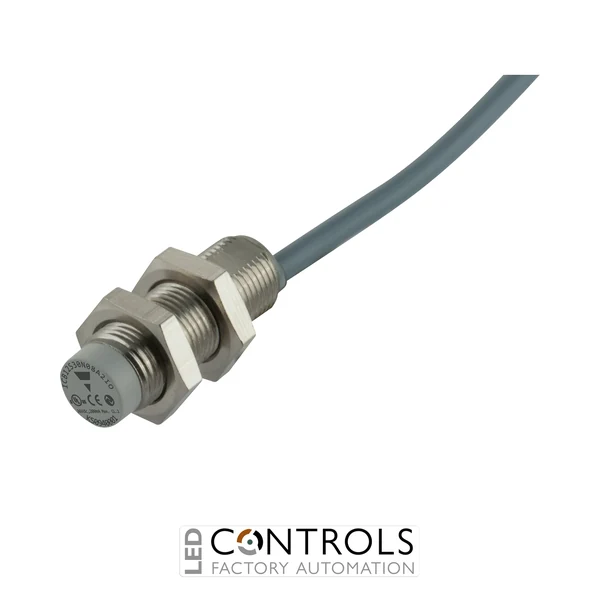

The Carlo Gavazzi ICB12S30N08A2IO is a smart M12 inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation systems. Part of the Carlo Gavazzi ICB IO-Link range, it combines an 8 mm rated sensing distance with a short nickel-plated brass body and configurable sensing functions for applications requiring both reliable detection and enhanced sensor diagnostics.
The ICB12S30N08A2IO is designed for non-flush mounting and features an integrated 2 m cable. Through IO-Link, its electrical switching output can be configured as PNP, NPN or push-pull and as normally open (NO) or normally closed (NC), providing considerably more installation flexibility than a conventional fixed-output proximity sensor.
Operating from 10–36 V DC, the sensor supports a maximum output current of 200 mA and maximum switching frequency of 2 kHz. It also provides IP67 protection and an operating temperature range of -25 to +70 °C, while IO-Link functionality enables configurable sensing distance, hysteresis, timer functions and diagnostic information for modern automated machinery.
Key Advantages
- IO-Link connectivity enables remote configuration, process data and enhanced sensor diagnostics.
- 8 mm rated sensing distance provides extended metal detection range from a compact M12 sensor.
- Configurable PNP, NPN or push-pull output provides flexibility when integrating with different control systems.
- Programmable NO or NC operation allows switching behaviour to be adapted without changing the sensor model.
- Adjustable sensing distance helps optimise detection for different targets and machine configurations.
- 2 kHz maximum switching frequency supports fast-moving machinery and repetitive detection applications.
- Nickel-plated brass construction and IP67 protection provide robust performance in industrial environments.
Key Features
- Carlo Gavazzi ICB IO-Link inductive proximity sensor.
- 8 mm rated operating distance.
- Non-flush mounting configuration.
- IO-Link communication.
- IO-Link v1.1 configurable functionality.
- Configurable PNP, NPN or push-pull switching output.
- Configurable normally open (NO) or normally closed (NC) operation.
- Selectable sensing distance at 33%, 50%, 75% or 100% of maximum sensing distance.
- Configurable hysteresis.
- Timer functions including ON delay, OFF delay, ON + OFF delay and one-shot operation.
- Temperature monitoring functionality through IO-Link.
- 10–36 V DC rated operating voltage.
- Maximum 200 mA output current.
- Maximum 2 kHz switching frequency.
- M12 × 1 short cylindrical threaded housing.
- Nickel-plated brass housing.
- Integrated 2 m cable.
- IP67 protection rating.
Reliable Inductive Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without physical contact by generating an electromagnetic field at the sensing face. When a suitable metal object enters the sensing field, the sensor changes its switching state. With no mechanical contact required, inductive sensing is well suited to repetitive position, presence, counting and speed-monitoring duties in automated industrial machinery.
The ICB12S30N08A2IO adds IO-Link communication to this proven sensing principle, allowing sensor parameters to be configured and diagnostic information to be accessed through a compatible IO-Link system. Its sensing distance can be set to 33%, 50%, 75% or 100% of the maximum 8 mm range, while output configuration, switching logic, hysteresis and timer functions can also be adjusted. This makes the sensor particularly useful in flexible machinery where operating parameters may need to be changed without replacing the sensing hardware.
Typical Applications
- Smart factory and Industry 4.0 automation systems.
- Metal component presence and position detection.
- Conveyor and material handling equipment.
- Rotational speed and movement monitoring.
- Packaging and production machinery.
- Automated assembly equipment.
- Machine tools and manufacturing systems.
- Applications requiring remote sensor configuration and diagnostics.
