Why Choose the Carlo Gavazzi ICB12S30N08POM1 Inductive Proximity Sensor?

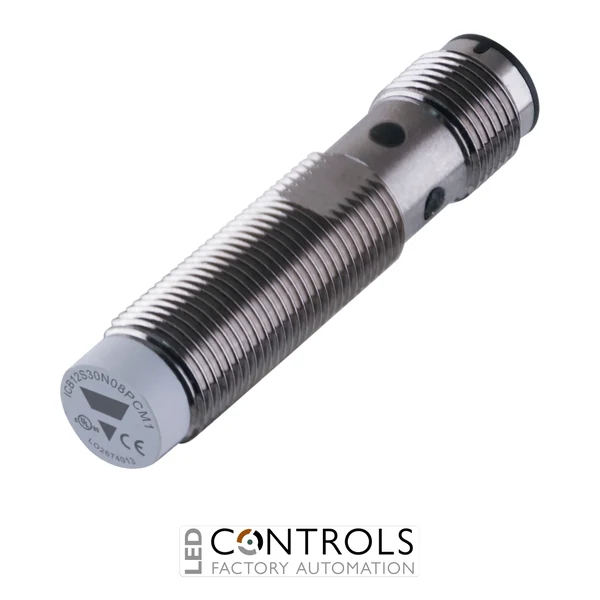

The Carlo Gavazzi ICB12S30N08POM1 is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB series, this extended-range sensor combines a short cylindrical threaded barrel with rugged nickel-plated brass construction for dependable operation in industrial environments.
The ICB12S30N08POM1 provides a rated operating distance of 8 mm and is designed for non-flush mounting. Its PNP normally open (NO), 3-wire DC output enables straightforward integration with compatible PLC inputs, machine controllers and automation systems for position monitoring, component detection, counting and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports a maximum output current of 200 mA and a maximum switching frequency of 2 kHz. The short M12 connector version measures approximately M12 × 54 mm with an M12 × 1 × 30 mm threaded section, while its detachable M12 connection and IP67 protection support convenient installation and dependable industrial operation.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical sensing wear.
- Extended 8 mm rated sensing distance in a compact M12 sensor format.
- Non-flush mounting supports the extended sensing range.
- PNP normally open output for compatible PLC and industrial control systems.
- Wide 10–36 V DC operating range for industrial automation applications.
- Fast 2 kHz maximum switching frequency for responsive machine sensing.
- Compact short-body construction with a 30 mm threaded section.
- Durable nickel-plated brass housing for industrial reliability.
- M12 plug connection simplifies installation, servicing and sensor replacement.
- IP67 ingress protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded short-body design.
- 8 mm rated operating distance.
- Non-flush mounting configuration.
- PNP normally open (NO), 3-wire DC output.
- 10–36 V DC rated power supply.
- 200 mA maximum output current.
- 2 kHz maximum switching frequency.
- M12 connector electrical connection.
- Nickel-plated brass housing.
- M12 × 1 × 30 mm threaded section.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Extended-Range Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. An electromagnetic sensing field responds when a suitable conductive target enters the detection zone, allowing the solid-state output to change state and provide repeatable position or presence information without the mechanical wear associated with conventional contact switches.
The Carlo Gavazzi ICB12S30N08POM1 combines a compact M12 short body with an extended 8 mm sensing distance, non-flush installation and fast PNP switching. Its detachable M12 connector makes installation and replacement straightforward, providing a practical sensing solution for automated machinery where increased detection range and compact dimensions are required.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Machine end-position monitoring.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- PLC-controlled factory automation systems.
