Why Choose the Carlo Gavazzi ICB12S30N10NC Inductive Proximity Sensor?

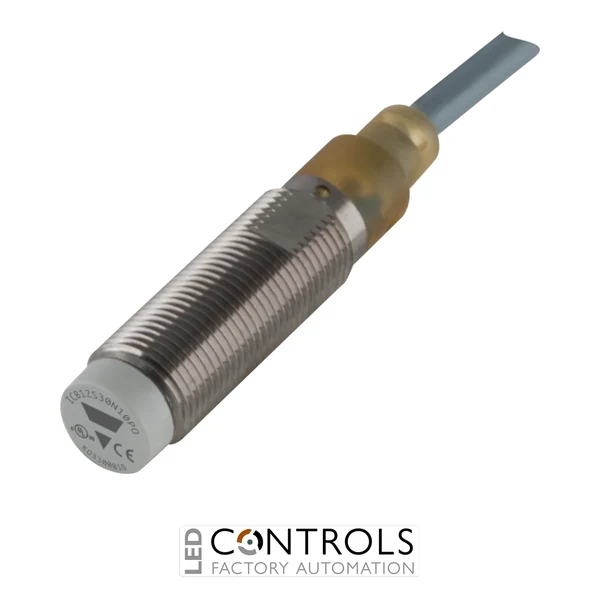

The Carlo Gavazzi ICB12S30N10NC is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic targets in industrial automation and machine-building applications. Part of the Carlo Gavazzi ICB series, this extended-range sensor combines a short cylindrical threaded barrel with a robust nickel-plated brass housing for dependable operation in industrial machinery.
The ICB12S30N10NC provides a rated operating distance of 10 mm and is designed for non-flush mounting. Its NPN normally closed (NC), 3-wire DC output provides a practical interface for compatible PLC inputs, machine controllers and automation systems used for position monitoring, metal component detection and machine sequencing.
Operating from a 10–36 V DC supply, the sensor supports an output current of up to 200 mA and fast solid-state switching for responsive industrial detection. An integral 2 m cable provides direct wiring, while the compact M12 construction and IP67 protection rating support installation in demanding production and automation environments.
Key Advantages
- Reliable non-contact detection of metallic targets without mechanical sensing wear.
- Extended 10 mm rated sensing distance in a compact M12 sensor format.
- Non-flush mounting supports the extended sensing range.
- NPN normally closed output for compatible industrial PLC and control systems.
- Wide 10–36 V DC operating range for industrial automation applications.
- Compact short-body M12 construction for machinery where installation depth is restricted.
- Durable nickel-plated brass housing for industrial reliability.
- Integral 2 m cable provides a straightforward wired connection.
- Solid-state inductive operation enables repetitive detection without physical contact.
- IP67 ingress protection for demanding industrial environments.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded short-body design.
- 10 mm rated operating distance.
- Non-flush mounting configuration.
- NPN normally closed (NC), 3-wire DC output.
- 10–36 V DC rated operating voltage.
- Up to 200 mA output current.
- 2 m integral cable connection.
- Nickel-plated brass housing.
- LED output status indication.
- Short-circuit and reverse-polarity protection.
- -25°C to +70°C operating temperature range.
- IP67 ingress protection.
Reliable Extended-Range Metal Detection for Industrial Automation
Inductive proximity sensors detect metallic objects without requiring physical contact. An electromagnetic sensing field responds when a suitable conductive target enters the detection zone, allowing the solid-state output to change state and provide repeatable position or presence information without the mechanical wear associated with conventional contact switches.
The Carlo Gavazzi ICB12S30N10NC combines a compact M12 short-body format with an extended 10 mm sensing distance, non-flush mounting and an NPN normally closed output. This combination makes it well suited to automated machinery where increased metal-detection range, compact installation and dependable repetitive operation are required.
Typical Applications
- Industrial machine position sensing.
- Metal component presence detection.
- Machine end-position monitoring.
- Conveyor object detection and counting.
- Packaging and production machinery.
- Automated assembly equipment.
- Material handling and transfer systems.
- PLC-controlled factory automation systems.
