Why Choose the Carlo Gavazzi ICB12S30N10NCM1 Inductive Proximity Sensor?

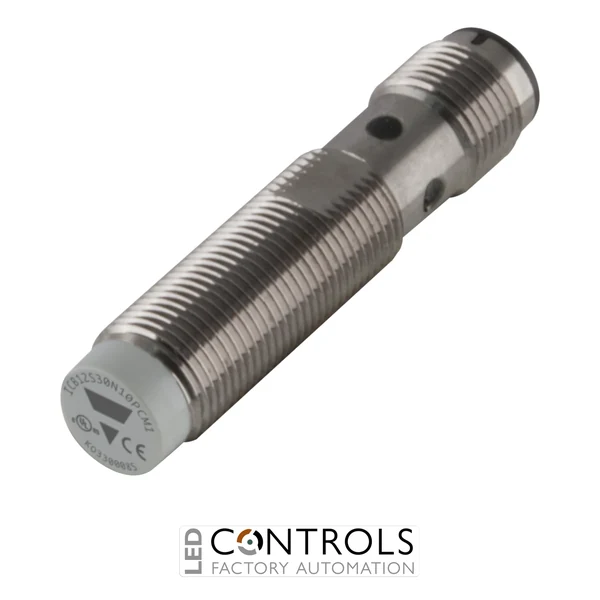

The Carlo Gavazzi ICB12S30N10NCM1 is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB inductive sensor series, it combines a short-body design, increased sensing range and robust nickel-plated brass construction for dependable industrial operation.
This sensor provides an NPN normally closed (NC) output with a rated operating distance of 10 mm. Its non-flush mounting configuration provides an increased sensing range while the compact M12 threaded barrel makes it suitable for machine installations where space efficiency and dependable metal detection are important.
With a 10–36 V DC supply range, maximum output current of 200 mA and maximum switching frequency of 2 kHz, the ICB12S30N10NCM1 is suitable for responsive industrial sensing applications. An M12 connector, operating temperature range of -25 to +70 °C and IP67 protection support reliable integration into demanding automation equipment.
Key Advantages
- Compact M12 inductive proximity sensor for non-contact metal detection.
- 10 mm rated sensing distance provides increased detection range.
- NPN normally closed output for compatible PLC and industrial control inputs.
- Non-flush mounting configuration for increased sensing performance.
- Convenient M12 plug connection simplifies installation and sensor replacement.
- Wide 10–36 V DC operating supply suits common automation systems.
- Fast switching frequency of up to 2 kHz supports responsive machine sensing.
- Durable nickel-plated brass housing with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded housing.
- Short-body design for compact installations.
- 10 mm rated operating distance.
- Non-flush mounting.
- NPN normally closed (NC) output.
- 10–36 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- M12 connector electrical connection.
- Nickel-plated brass housing for industrial durability.
- Yellow LED output indication.
- IP67 ingress protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. This operating principle eliminates mechanical switching wear and enables dependable position, presence and movement detection across automated machinery, conveying equipment and industrial production systems.
The ICB12S30N10NCM1 combines a 10 mm sensing distance with a compact short-body M12 housing. Its NPN normally closed output enables integration with compatible PLC inputs and industrial control equipment, while the detachable M12 connector facilitates installation, maintenance and sensor replacement.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Metal component detection on production lines.
- Packaging and assembly machinery.
- Automated manufacturing equipment.
- Machine tools and positioning systems.
- PLC-controlled machinery and factory automation systems.
