Why Choose the Carlo Gavazzi ICB12S30N10NO Inductive Proximity Sensor?

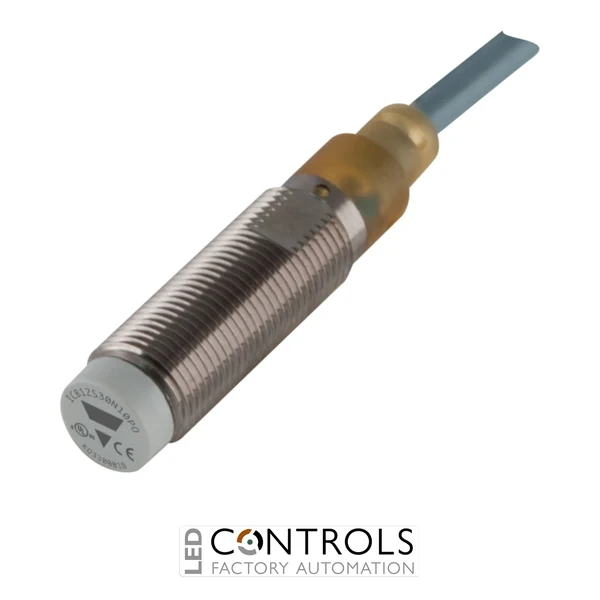

The Carlo Gavazzi ICB12S30N10NO is a compact and reliable M12 inductive proximity sensor designed for non-contact detection of metallic objects in industrial machinery and automation systems. As part of the Carlo Gavazzi ICB inductive sensor series, it combines an increased sensing range, short threaded body and durable nickel-plated brass construction for dependable industrial sensing.
This sensor provides an NPN normally open (NO) output with a rated operating distance of 10 mm. Its non-flush mounting configuration provides increased sensing range, while the compact M12 cylindrical format makes it suitable for machine installations where space efficiency and reliable metal detection are important.
With a 10–36 V DC supply range, maximum output current of 200 mA and maximum switching frequency of 2 kHz, the ICB12S30N10NO is suitable for responsive industrial sensing applications. A pre-wired 2 m cable, operating temperature range of -25 to +70 °C and IP67 protection support reliable installation in demanding automation environments.
Key Advantages
- Compact M12 inductive proximity sensor for non-contact metal detection.
- 10 mm rated sensing distance provides increased detection range.
- NPN normally open output for compatible PLC and industrial control inputs.
- Non-flush mounting configuration for increased sensing performance.
- Wide 10–36 V DC operating supply suits common automation systems.
- Fast switching frequency of up to 2 kHz supports responsive object detection.
- Pre-wired 2 m cable provides a straightforward electrical connection.
- Durable nickel-plated brass housing with IP67 protection.
Key Features
- Carlo Gavazzi ICB series inductive proximity sensor.
- M12 cylindrical threaded housing.
- Short-body design for compact installations.
- 10 mm rated operating distance.
- Non-flush mounting.
- NPN normally open (NO) output.
- 10–36 V DC rated power supply.
- Maximum output current of 200 mA.
- Maximum switching frequency of 2 kHz.
- Pre-wired 2 m cable connection.
- Nickel-plated brass housing for industrial durability.
- IP67 ingress protection.
Reliable Non-Contact Detection for Industrial Automation
Inductive proximity sensors detect metallic targets without requiring physical contact. This operating principle eliminates mechanical switching wear and enables dependable position, presence and movement detection across automated machinery, conveying equipment and industrial production systems.
The ICB12S30N10NO combines a 10 mm increased sensing distance with a compact short-body M12 housing. Its NPN normally open output enables integration with compatible PLC inputs and industrial control equipment, while its 2 kHz maximum switching frequency supports fast detection in dynamic machine processes.
Typical Applications
- Industrial machine position and presence detection.
- Conveyor and material handling systems.
- Metal component detection on production lines.
- Packaging and assembly machinery.
- Automated manufacturing equipment.
- Machine tools and positioning systems.
- PLC-controlled machinery and factory automation systems.
